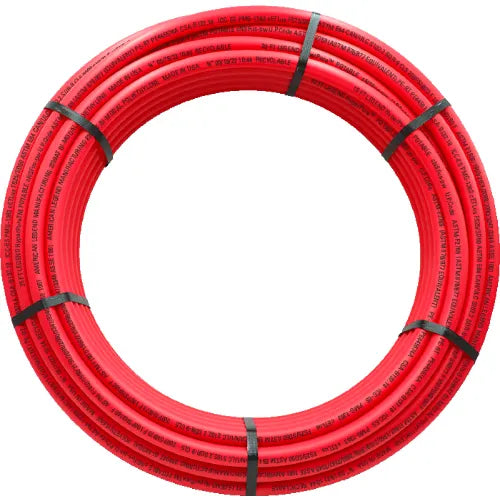

Legend Valve 500-10-100R HyperPure PE-RT Tubing (1 in x 100 ft Coil)

Product Description

Legend Valve 500-10-100R HyperPure PE-RT tubing is a bi-modal polyethylene raised-temperature potable water tube supplied as a 100 ft coil with 1 in inside diameter and 1-1/8 in outside diameter. The tube has a 1/8 in wall thickness, SDR-9 rating, and a working pressure of 200 psi at 73 F (100 psi at 180 F). It meets multiple plumbing and NSF standards.

• Construction: HyperTherm 2399 NT bi-modal PE-RT material; potable water tubing compatible with common fitting systems
• Ratings: 200 psi at 73 F and 100 psi at 180 F; operating temperature up to 180 F; SDR-9, 1/8 in wall
• Certifications: ANSI/NSF 14, ANSI/NSF 61, ASTM F2769, ASTM E84, CSA B137.18; ICC-ES report PMG-1363

Product Highlights

Bi-modal PE-RT potable water tubing, 1 in I.D. x 100 ft coil, 200 psi @ 73 F, SDR-9, certified.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 500-10-100R
• Country of Origin: Domestic

Technical Specifications

• Manufacturer Part Number: 500-10-100R
• Brand: Legend Valve
• Material: HyperTherm 2399 NT bi-modal PE-RT (Polyethylene Raised Temperature)
• Type: Potable Water Tubing
• Inside Diameter: 1 in
• Outside Diameter: 1-1/8 in
• Wall Thickness: 1/8 in
• Length: 100 ft (coil)
• Style: Coil
• End Style: CTS
• Schedule Rating: SDR-9
• Rated Pressure: 200 psi @ 73 F / 100 psi @ 180 F
• Operating Temperature Range: up to 180 F (pressure rating shown at 73 F and 180 F)
• Bend Radius: 6-3/4 in
• Linear Expansion Rate: 1.1 in / 10 F / 100 ft
• Weight per Coil: 17.3 lb
• Certifications and Standards: ANSI/NSF 14, ANSI/NSF 61, ASTM F2769, ASTM E84, CSA B137.18; ICC-ES report PMG-1363; UPC, IPC, IRC listed
• Country of Origin: United States
• Package Quantity: 1
