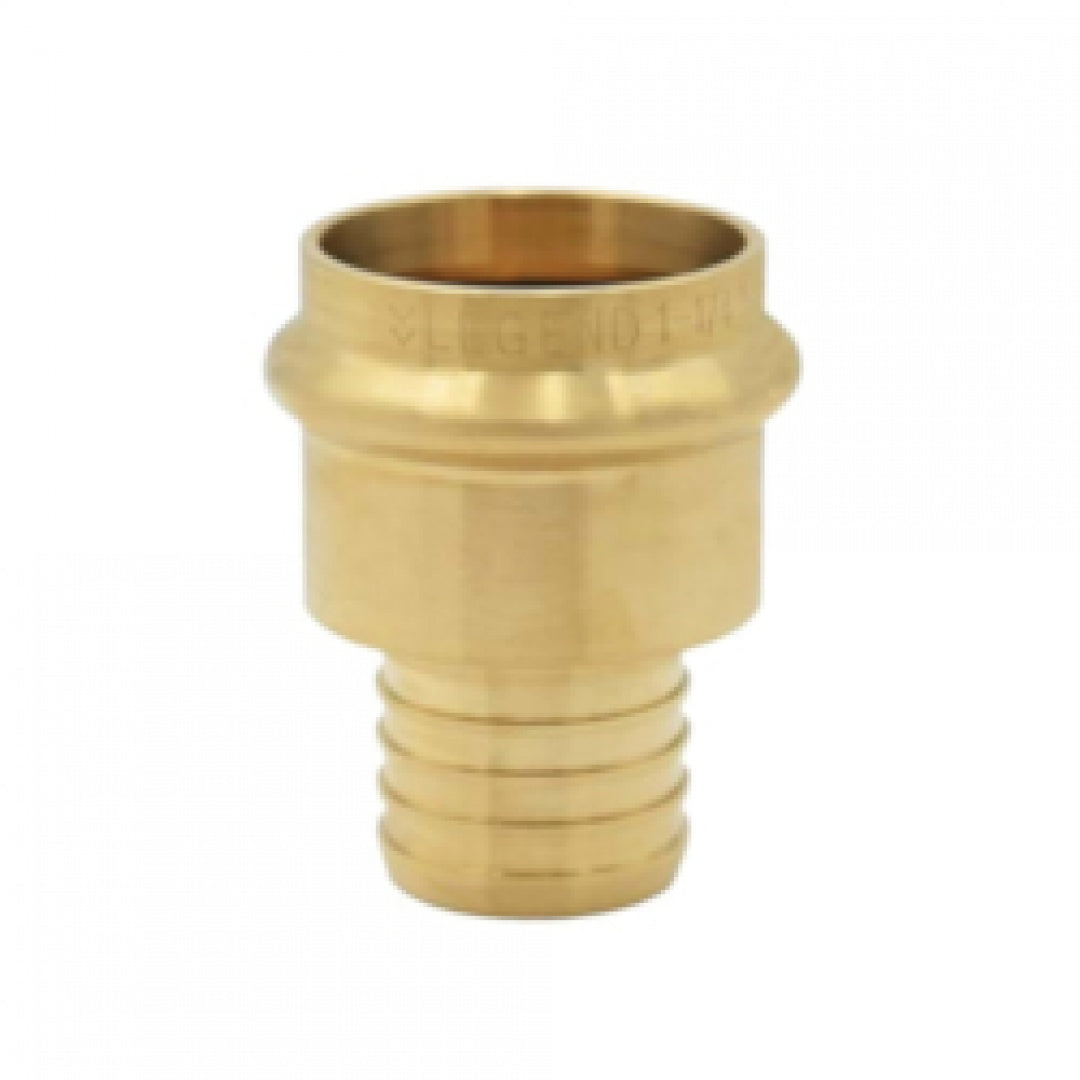

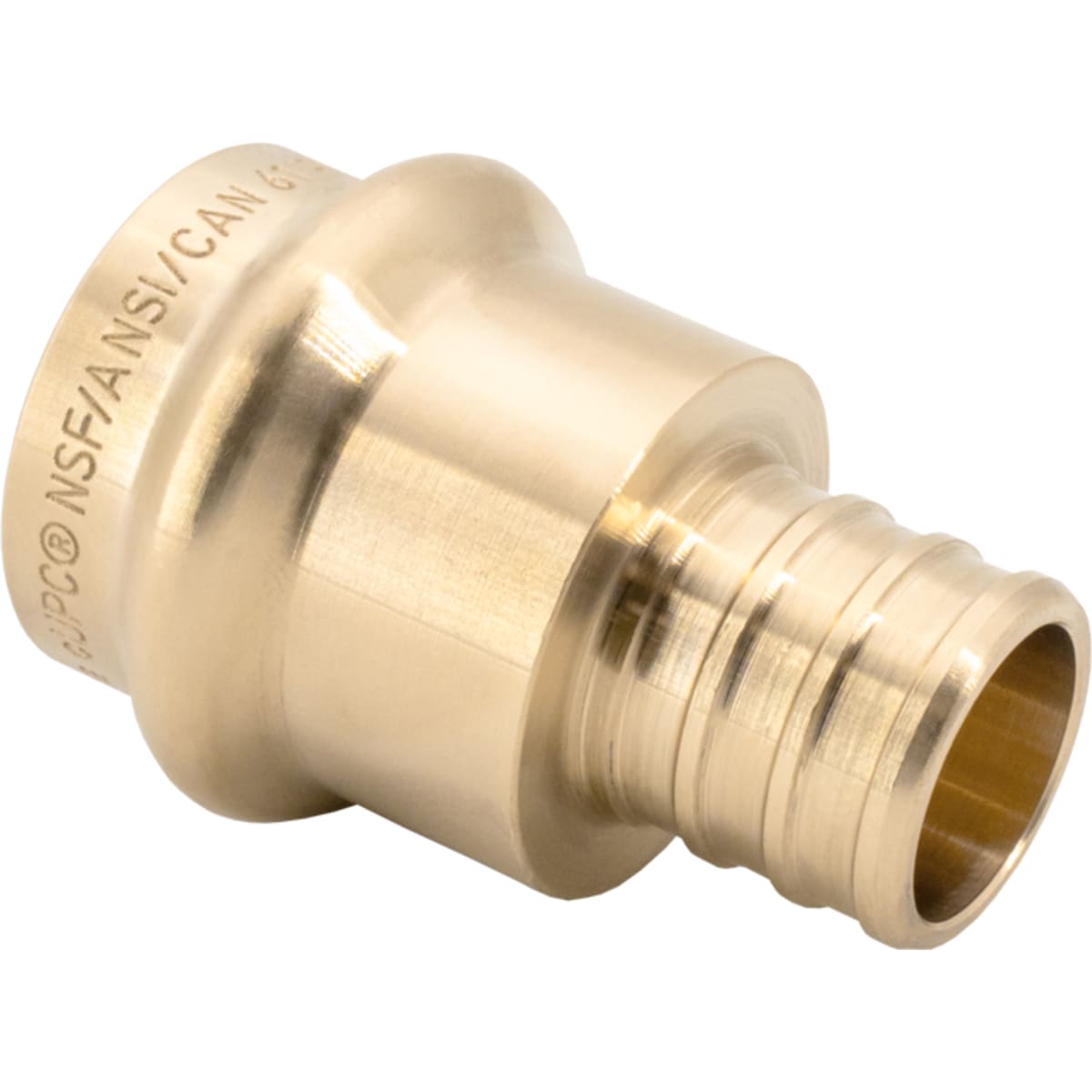

Legend Valve 450-858P Nl Press x Pex F1807 Adapter 2 inch

Product Description

The LEGEND VALVE 450-858P is a lead-free adapter with a 2-inch nominal size and press x F1807 PEX connections. Constructed from DZR forged brass, this adapter is suitable for various plumbing applications. It is rated for 200 psi CWP and 15 psi WSP, with a temperature range of 0 to 250 degrees F.

• Press-type end connections eliminate soldering needs.
• Designed for installation onto ASTM B88 types K, L and M hard drawn copper tubing.
• Constructed from DZR forged brass.

Product Highlights

Lead-free adapter with press x PEX connections, eliminating the need for soldering.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 450-858P
• Country of Origin: Import

Technical Specifications

• End Style: Press x F1807 PEX
• Fitting/Connector Type: Adapter
• Material: Brass
• Method of Manufacture: DZR Forged
• Nominal Size: 2 in
• Pressure Rating: 200 psi CWP/15 psi WSP
• Temperature Rating: 0 to 250 deg F
• Manufacturer: LEGEND VALVE
• Type: Adapter (Other)
• Connection_Type: Press
• Standards: 15 WSP, 200 CWP
• Connection Type: Press x PEX
