Legend Valve 314-124NL 3/4 T5201nl Fip x Fl Angle Met

Product Description

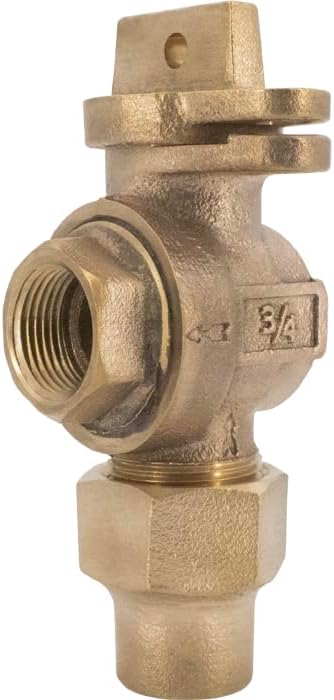

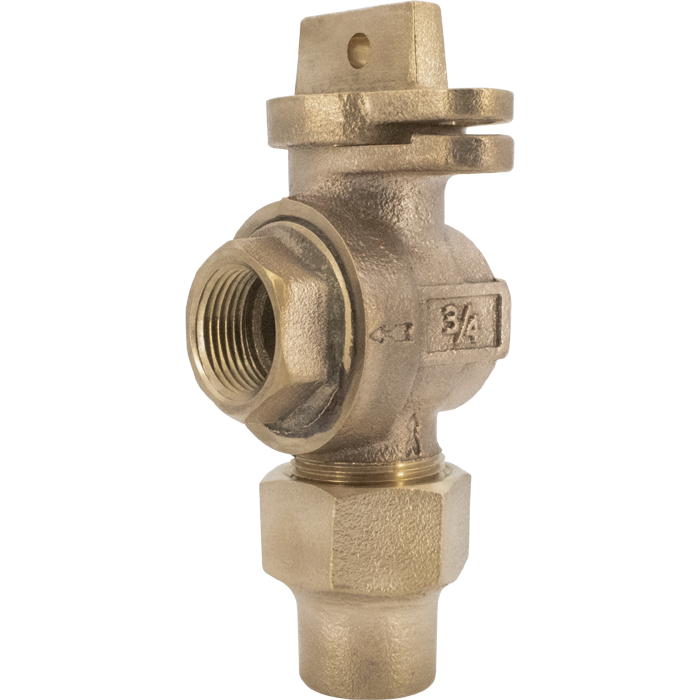

The LEGEND VALVE 314-124NL is a 3/4 T5201NL FIP x FL ANGLE MET. It is a no lead bronze 1/4 angled meter ball valve with FNPT x flare connections. The operating head has been drilled to accept stationary rod cotter pin attachment. It is designed for underground water service installations only.

• No lead bronze construction
• 1/4 angled meter ball valve
• FNPT x flare connections

Product Highlights

This valve features a PTFE-coated ball for bubble-tight shutoff and low torque operation, ensuring a long service life.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 314-124NL
• Country of Origin: Indonesia

Technical Specifications

• Manufacturer: LEGEND VALVE
• Size: 3/4"
• Standards: 1-1/4" to 2" 80 p.s.i. 80°F, 1/2" to 1" 100 p.s.i. 100°F, Conforms to AWWA C 800
• Connection Type: FNPT x Flare
• Country of Origin (subject to change): Indonesia
• ITEM NUMBER: 314-124NL
• UPC: 662545107288
• CONFIGURATION: FNPT x Flare
• Ratings: Valve body is rated for 300 psi water pressure. End connections are manufactured in compliance to the latest version of AWWA C800, for high pressure.
• Brand: LEGEND VALVE
• MPN: 314-124NL
• ItemPackageQuantity: 1
• Features: 3/4" T-5201NL No Lead Bronze FNPT x Flare Ball Type 1/4 Turn Angl
• Product Type: Plumbing Valve
