Legend Valve 313-107nl No Lead Bronze Flare Union 1.5 in

Product Description

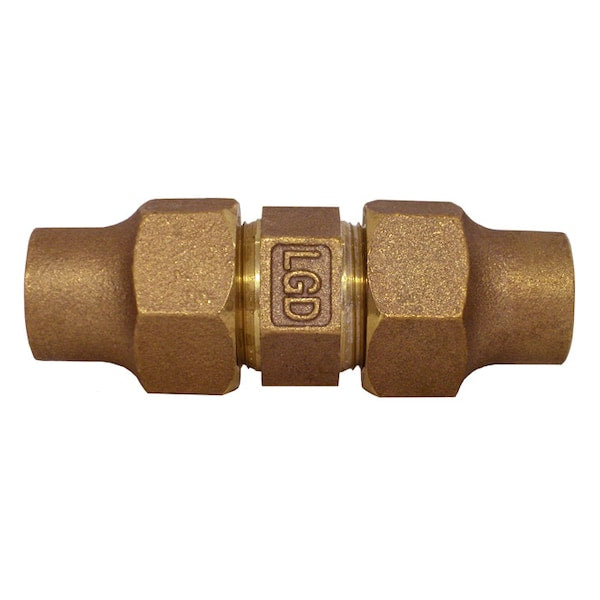

The LEGEND VALVE 313-107nl is a 3-part, no lead bronze union with flare x flare connections, sized at 1-1/2 inches. It is designed for use in potable water distribution systems where lead-free compliance is required. The union construction allows for straightforward disconnection and reconnection of flare-end tubing without cutting the line. Rated to 80 psi at 80 degrees F for sizes 1-1/4 inches through 2 inches, this fitting is built to meet AWWA C 800 standards. Licensed plumbers and water service contractors are the primary installers of this type of fitting.

This union is suited for residential and light commercial water service applications involving copper tubing with flared ends. The 3-part design — consisting of two end fittings and a center nut — makes it a practical choice for service lines, meter sets, and locations where periodic disconnection is anticipated. Its no lead bronze construction addresses requirements under lead-free plumbing codes for systems conveying potable water.

Key Features

• No lead bronze construction meets lead-free requirements for potable water systems
• Flare x flare connection type suits copper tubing installations
• 3-part union design allows line disconnection without cutting
• Rated 80 psi at 80 degrees F for 1-1/4 inches to 2 inches sizes
• Conforms to AWWA C 800 standard for underground service line fittings

Compatibility

Designed as a lead-free replacement-style union for 1-1/2 inch flare-end copper tubing used in potable water service line applications conforming to AWWA C 800.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable plumbing code, including IPC requirements for lead-free fittings on potable water systems. Shut off the water supply and relieve line pressure before disconnecting or assembling the union. Ensure flare ends are properly formed and free of damage before seating against the union seats. Do not overtighten the union nut, as bronze fittings can be damaged by excessive torque.

Technical Specifications

• Size: 1-1/2 inches
• Connection Type: Flare x Flare
• Configuration: 3-Part Union
• Material: No Lead Bronze
• Pressure Rating (1-1/4 in to 2 in): 80 psi at 80 degrees F
• Pressure Rating (1/2 in to 1 in): 100 psi at 100 degrees F
• Standard: AWWA C 800
• Country of Origin: Indonesia

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 313-107nl
