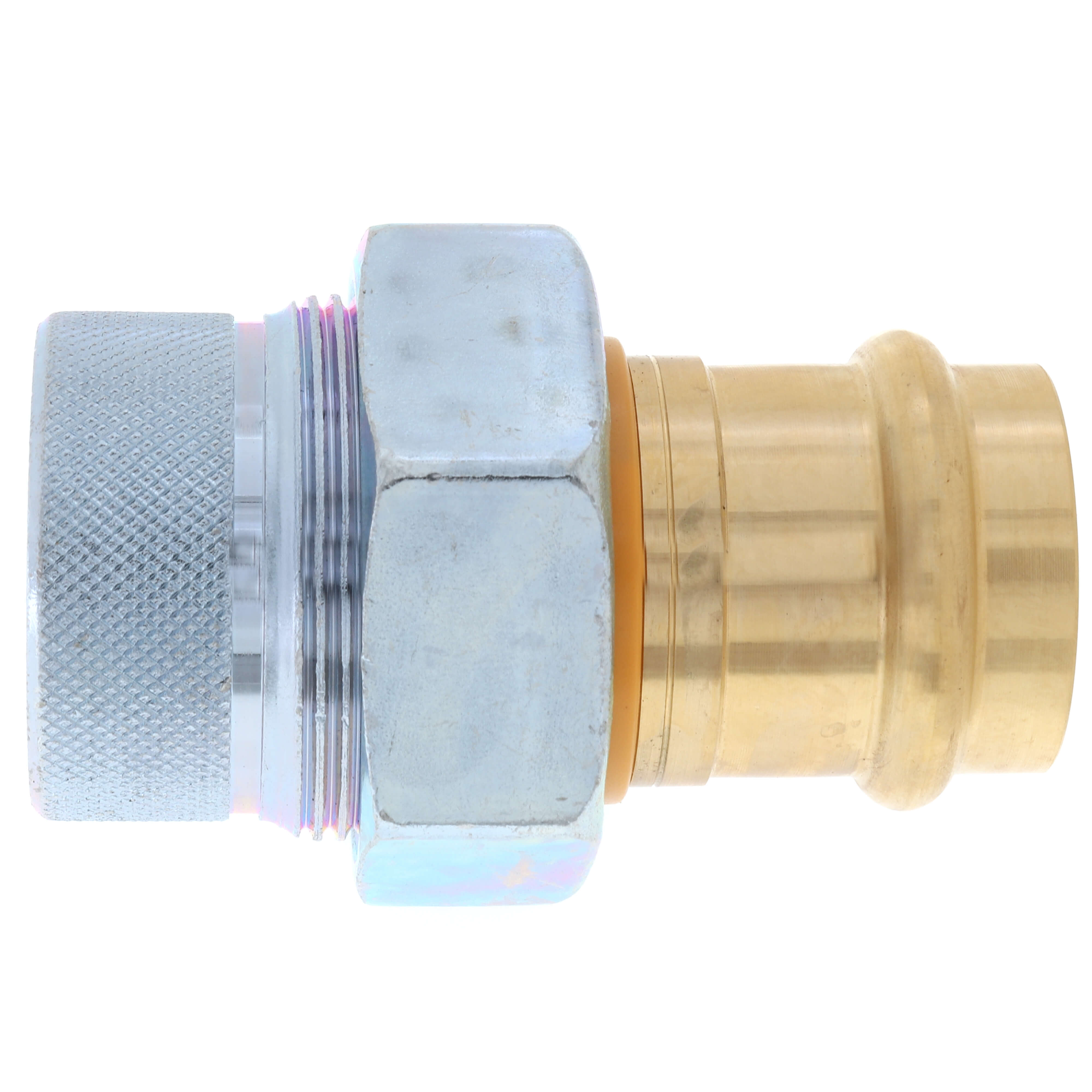

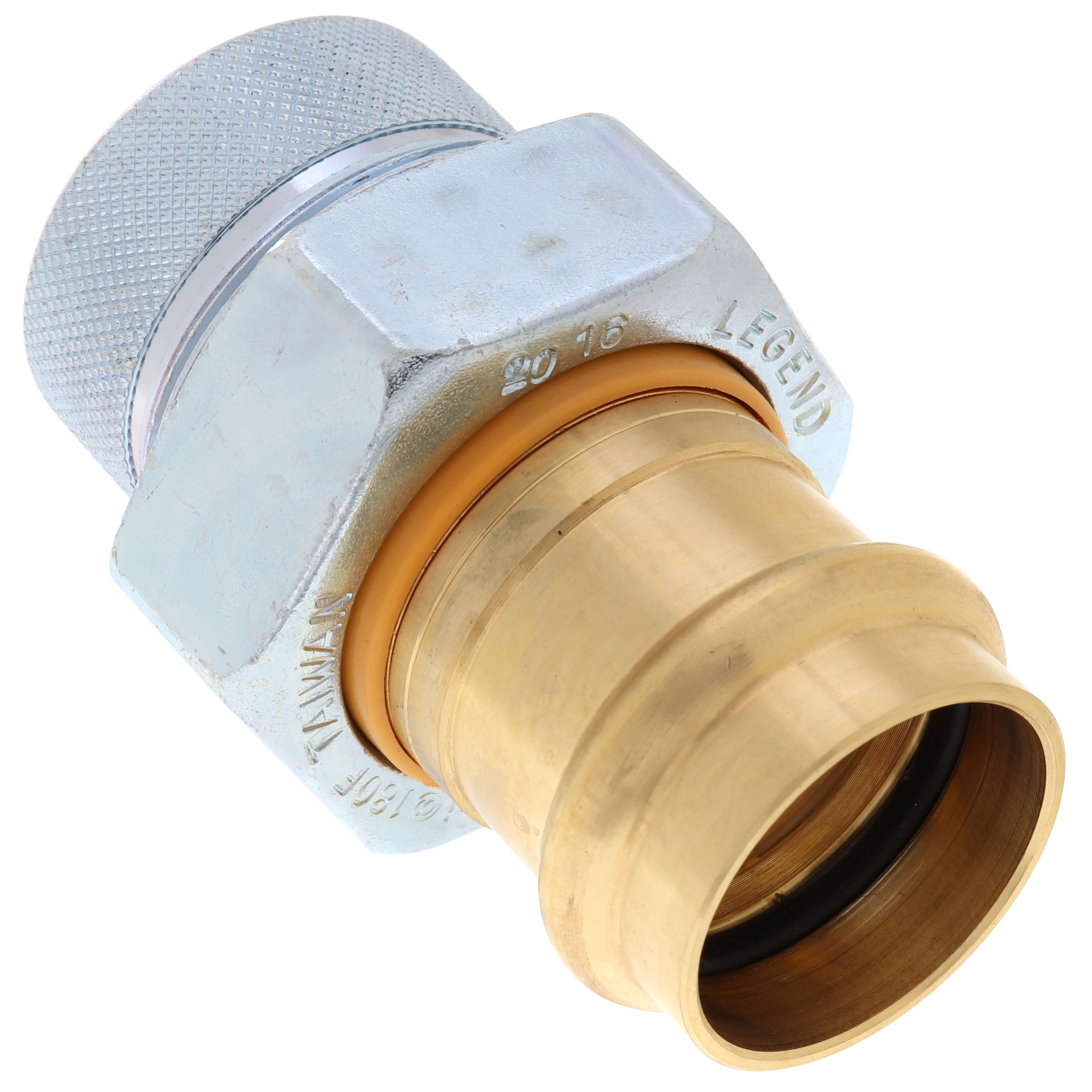

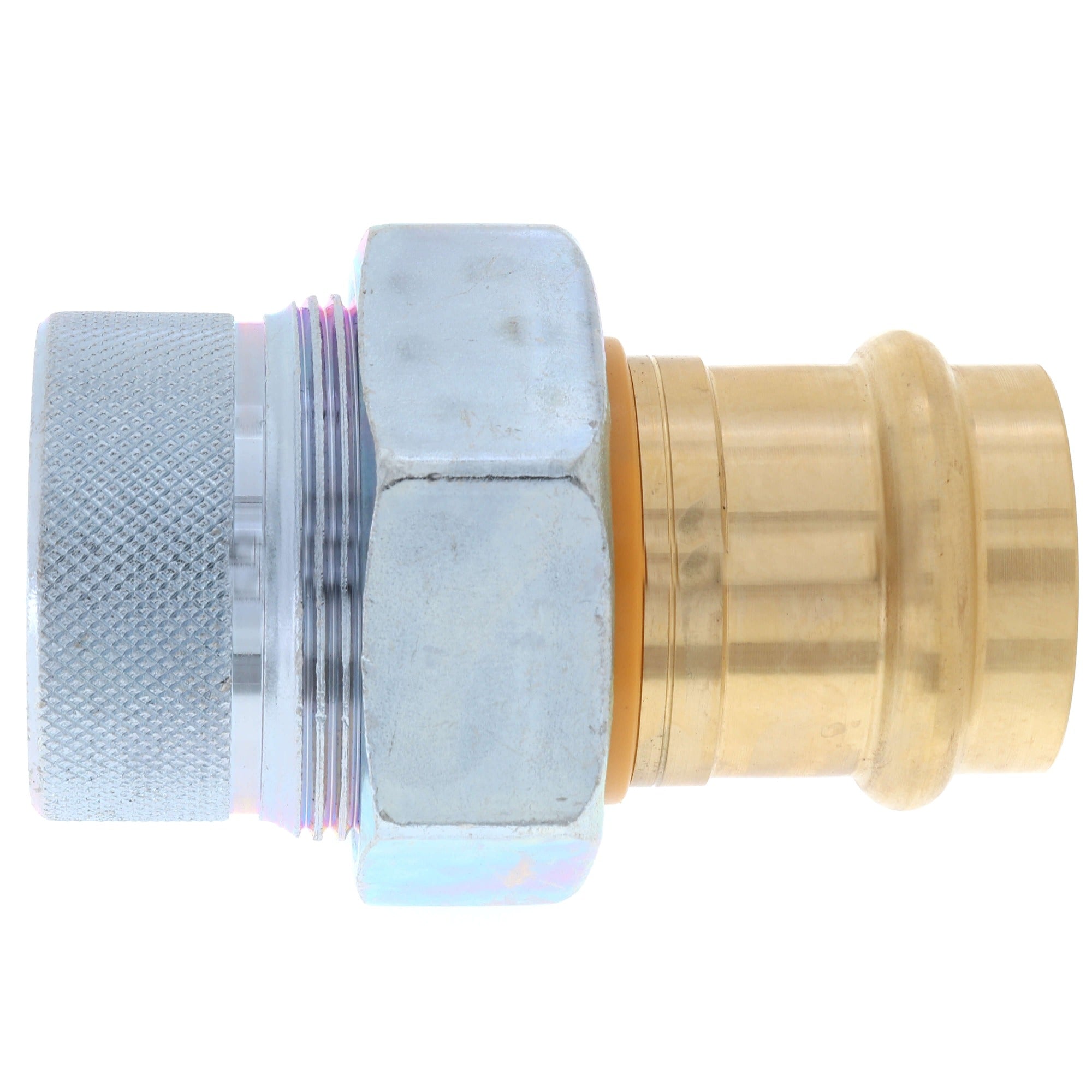

Legend Valve 301-105PNL 1 FNPT x Press P-571NL Dielectric Union

Product Description

The Legend Valve 301-105PNL is a 1 FNPT x Press P-571NL Dielectric Union designed for preventing galvanic corrosion where two different metals meet. This product is suitable for both residential and commercial applications.

• Made with high-strength galvanized forged steel
• Manufactured for installation onto ASTM B88 types K, L, and M
• Not recommended for coiled (annealed) soft copper tubing

Product Highlights

This dielectric union is constructed from galvanized forged steel and is lead-free. It effectively reduces stray current and galvanic corrosion, making it ideal for potable water installations.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 301-105PNL

Technical Specifications

• Nominal Size: 1 inch
• Connection Type: FNPT x Press
• Pressure Rating: 200 psi CWP
• Material: Forged Steel
• Finish: Hot Dipped Galvanized
• Temperature Rating: Up to 180 degrees Fahrenheit
• Length: 3.04 inches
• Height: 2.26 inches
• Series: P-571NL
• Domestic/Import: Import
• Compliance: ANSI/NSF 372
