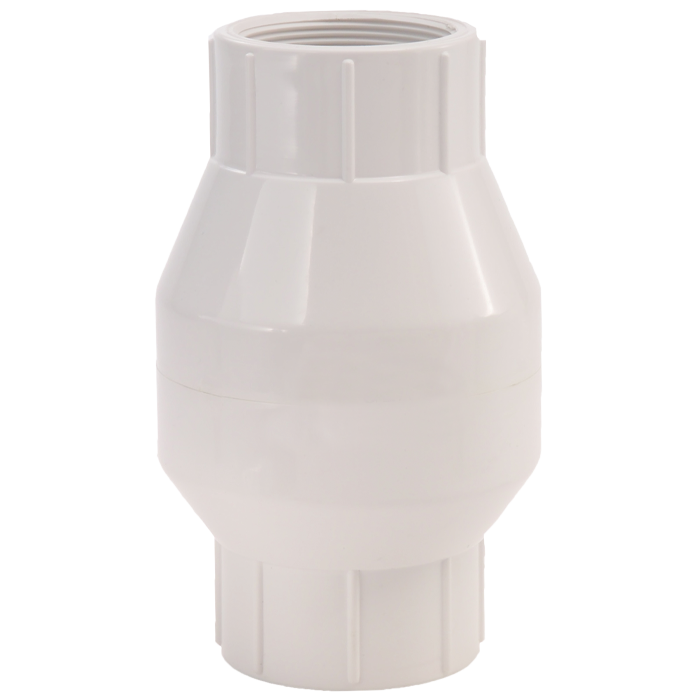

Legend Valve 203-206 1-1/4 S-611 PVC Check Valve

Product Description

The Legend Valve 203-206 is a 1-1/4 S-611 PVC Check Valve. It is designed for use in plumbing applications to prevent backflow in piping systems. It is compatible with SCH 40/STD PVC pipe and can handle pressures up to 150 psi CWP.

• Spring actuator for reliable operation
• Made from 100% virgin PVC resin
• Silent operation with minimal pressure drop

Product Highlights

This check valve features a soft-seated, fully-guided poppet design. It allows for linear flow and can be installed in both vertical and horizontal orientations. The valve is not suited for compressed air services.

Product Information

Standard Information

• Manufacturer: Legend Valve
• UPC: 662545003689

Technical Specifications

• Series: S-611
• Nominal Size: 1-1/4 inches
• Body Material: PVC
• Actuator Type: Spring
• Inlet to Outlet Length: 6-1/4 inches
• Pressure Rating: 150 psi CWP
• Temperature Rating: 140 degrees F
• Softgoods Material: EPDM Seal
• Trim Material: PVC Connector Seat/Stainless Steel Spring
• Dimensions: 3.63 inches H
• Domestic/Import: Import
