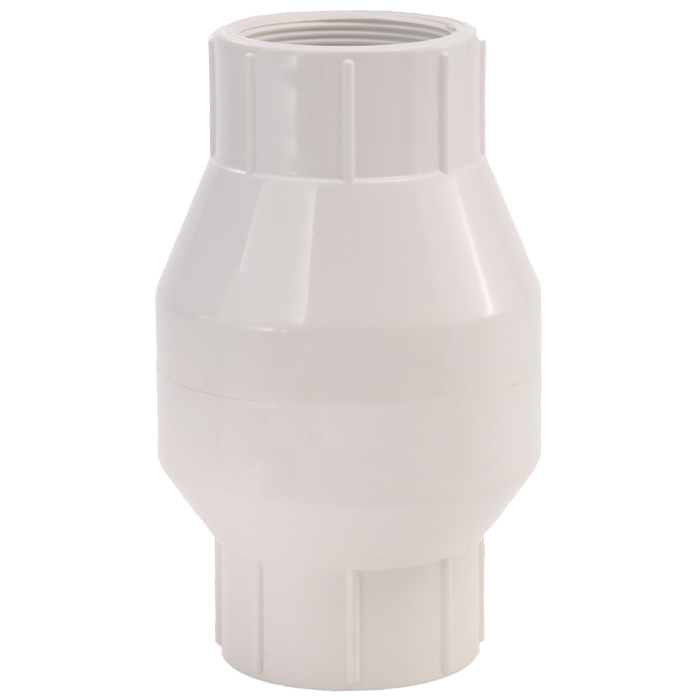

LEGEND VALVE 203-204 3/4 S-611 PVC CHECK VALVE

Product Description

The LEGEND VALVE 203-204 is a check valve designed for use in plumbing applications. This valve features a spring actuator and is made from PVC, ensuring durability and reliability in various installations.

• Suitable for SCH 40/STD PVC pipe
• Allows for linear flow with minimal pressure drop
• Soft-seated design for quiet operation

Product Highlights

This valve can be installed in both vertical and horizontal positions, making it versatile for different setups. Its strong body withstands pressures up to 150 psi and operates effectively under temperatures up to 140 degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: LEGEND VALVE
• MPN: 203-204

Technical Specifications

• Actuator Type: Spring
• Body Material: PVC
• Trim Material: PVC Connector Seat/Stainless Steel Spring
• Nominal Size: 3/4 inch
• Pressure Rating: 150 psi CWP
• Temperature Rating: 140 degrees Fahrenheit
• Inlet to Outlet Length: 4.13 inches
• Softgoods Material: EPDM Seal
• Dimensions: 2.19 inches high
