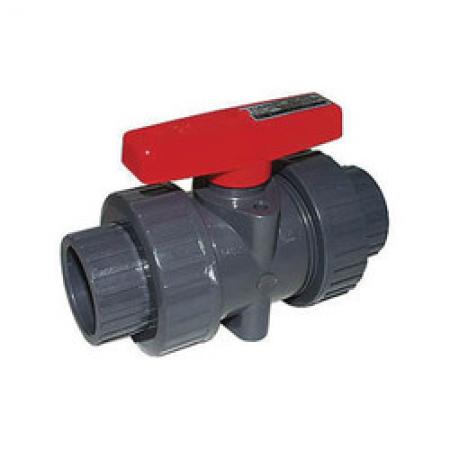

Legend Valve 201-205 1 T/S603 PVC Ball Valve 1 inch

Product Description

The Legend Valve 201-205 1 T/S603 PVC Ball Valve is a reliable choice for plumbing applications. Designed for maximum flow and minimal pressure drop, this valve features a UPVC body and ball, PTFE seat trim, and EPDM O-rings.

• Full port for maximum flow
• EPDM O-rings
• UPVC construction

Product Highlights

The Legend Valve 201-205 is engineered for efficiency and durability, suitable for both standard and extra heavy pipe. This valve's unique double union allows for easy maintenance.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 201-205

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: UPVC
• Body Material: UPVC
• Color: Gray
• Dimensions: 3.88 inches height
• Domestic/Import: Import
• End Style: FNPT/Solvent
• Inlet to Outlet Length: 5.63 inches
• Nominal Size: 1 inch
• Port Type: Full
• Pressure Rating: 150 psi
• Series: T/S-603
• Softgoods Material: EPDM
• Temperature Rating: 140 degrees Fahrenheit
• Trim Material: UPVC Stem and PTFE Seat
• Standards: 150 psi at 73 degrees Fahrenheit
• Country of Origin: Taiwan, Province of China
