LEGEND VALVE Legend Valve 114-903PNL Angle Stop Valve (1/2 x 3/8 Angle)
LEGEND VALVE Legend Valve 114-903PNL Angle Stop Valve (1/2 x 3/8 Angle)

Legend Valve 114-903PNL Angle Stop Valve (1/2 x 3/8 Angle)

Brand: LEGEND VALVE
SKU: 114-903PNL
Availability: In Stock

Ships same day if ordered by 12 pm
$23.63
$23.63
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

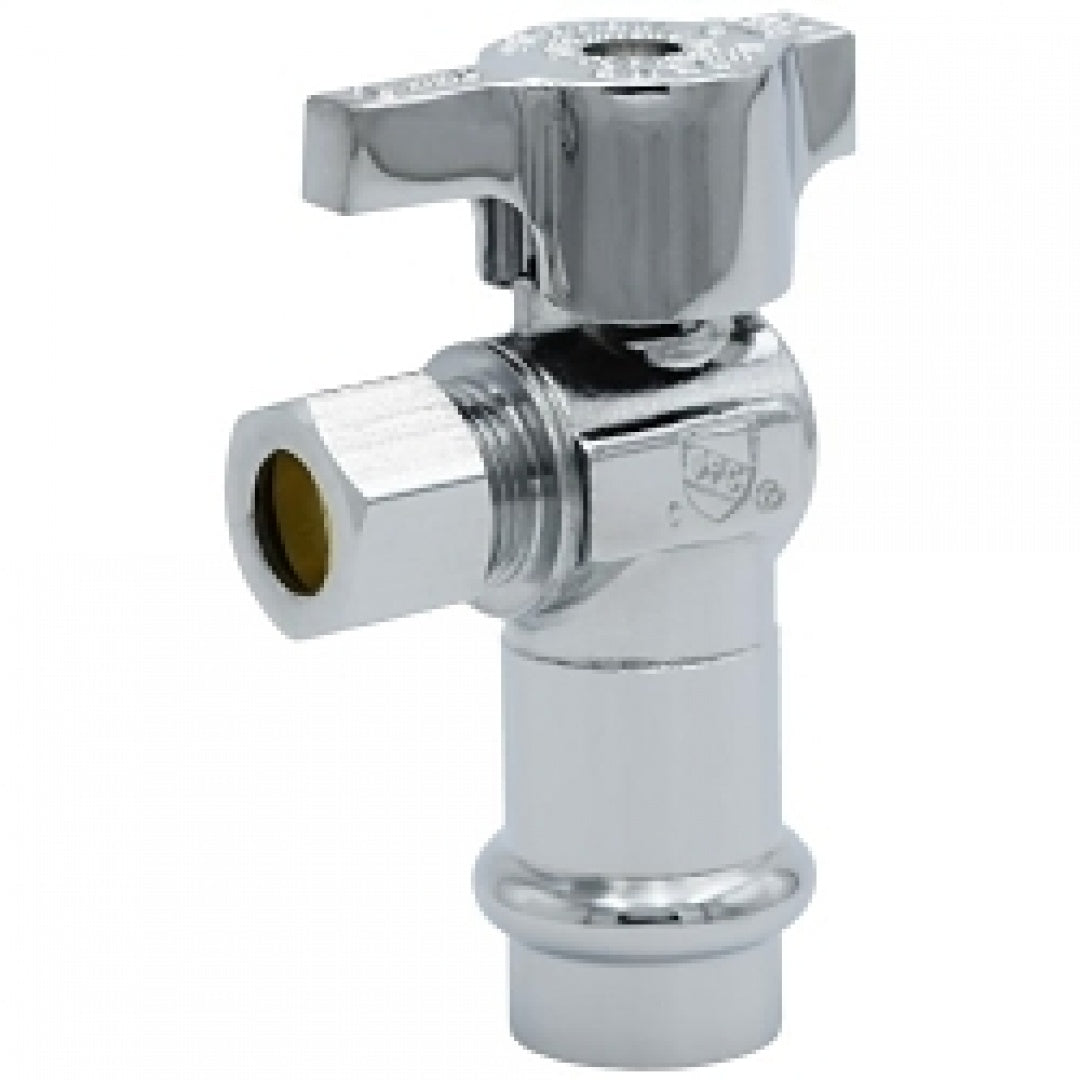

Legend Valve 114-903PNL is an angle stop supply valve with a 1/2 inch press inlet and a 3/8 inch outside diameter compression outlet. It uses a quarter-turn, self-cleaning ball valve with PTFE seat and dual O-ring stem seal for positive shutoff. The forged brass (UNS C46500) chrome-plated body is rated 125 PSI CWP and 120°F maximum service temperature for potable water systems.

  • 1/2 inch press inlet and 3/8 inch OD compression outlet; angle stop configuration
  • Quarter-turn self-cleaning ball valve with PTFE seat and dual O-ring stem seal
  • Forged chrome-plated brass (UNS C46500); pressure rating 125 PSI CWP and temperature rating 120°F; NSF/ANSI 61 compliant

Product Highlights

Compact chrome-plated angle supply stop for potable water with press inlet and OD compression outlet; not suitable for steam service.

Product Information

Standard Information

  • Brand: LEGEND VALVE
  • Manufacturer Part Number: 114-903PNL
Technical Specifications
Brand
Legend Valve
MPN
114-903PNL
Product Type
Angle stop / supply stop
Connection
1/2 inch press inlet x 3/8 inch OD compression outlet
Size
1/2" x 3/8"
Operation
Quarter-turn ball valve (1/4 turn)
Material
Forged brass
Brass Alloy
UNS C46500
Finish
Chrome plated
Seat Material
PTFE
Stem Seal
Dual O-ring (EPDM)
Pressure Rating
125 PSI cold working pressure (CWP)
Temperature Rating
120 F maximum service temperature
Suitable for Steam
Not suitable for steam service
Certifications / Standards
NSF/ANSI 61
Application
Drinking water / potable water systems
End-to-End Length
2.74 inch
Outlet Type
OD compression
Inlet Type
Press
Handle Material
Chrome-plated zinc (ASTM B86)
Included Components
Brass compression ferrule, nut, end adapter, ball, stem, EPDM stem O-ring, press O-ring, stainless steel screw
Lead Free
Yes
Body Pattern
Angle
