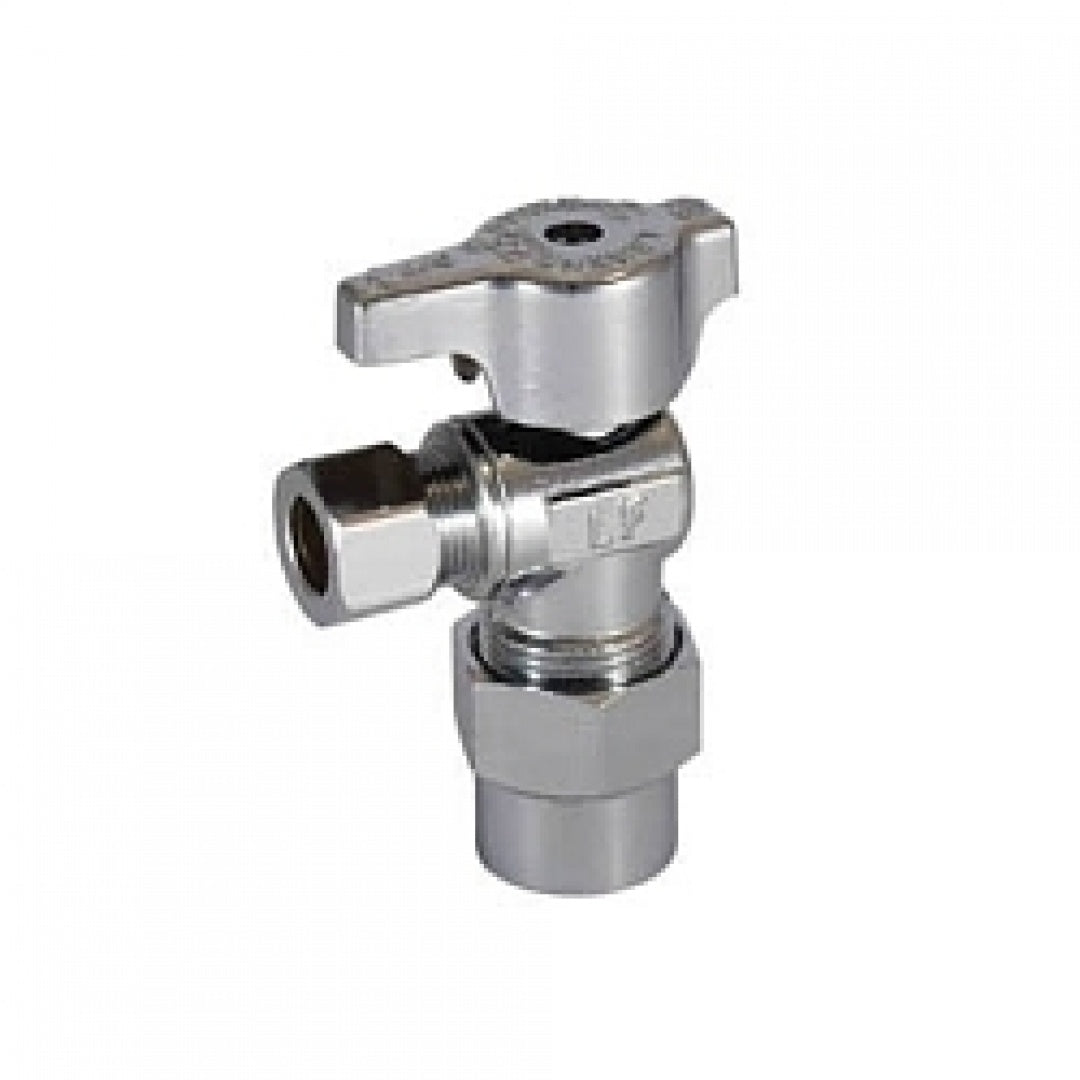

Legend Valve 114-607NL 1/2CPVCX3/8OD Stop

Product Description

The Legend Valve 114-607NL is a 1/2CPVCX3/8OD stop. The lead-free design is suitable for all no-lead potable water installations. The self-cleaning ball valve design resists mineral and scale build-up, assuring positive shutoff and re-opening. Ball seat operation and dual O-ring stem seal features outperform traditional multi-turn stop designs.

• Lead free design suitable for potable water installations
• Self-cleaning ball valve resists mineral and scale build-up
• Ball seat operation and dual O-ring stem seal

Product Highlights

Ideal for upgrading worn, leaking stops, this valve features a compact, forged brass body and a 1/4 turn.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 114-607NL
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Body Material: Brass
• End Style: CPVC x Compression
• Finish: Polished Chrome
• Media: Water
• Nominal Size: 1/2 x 3/8 in
• Pressure Rating: 125 psi
• Series: T-595NL
• Softgoods Material: Buna-N/EPDM
• Temperature Rating: 120 deg F
• Trim Material: Brass
• Type: 1/4 Turn
• Manufacturer: LEGEND VALVE
• Size: 1/2" x 3/8"
• Standards: 125 CWP
• Connection Type: CPVC x OD
