Legend Valve 114-602NL T-595NL Angle Stop Valve 3/8 in FNPT x Compression

Product Description

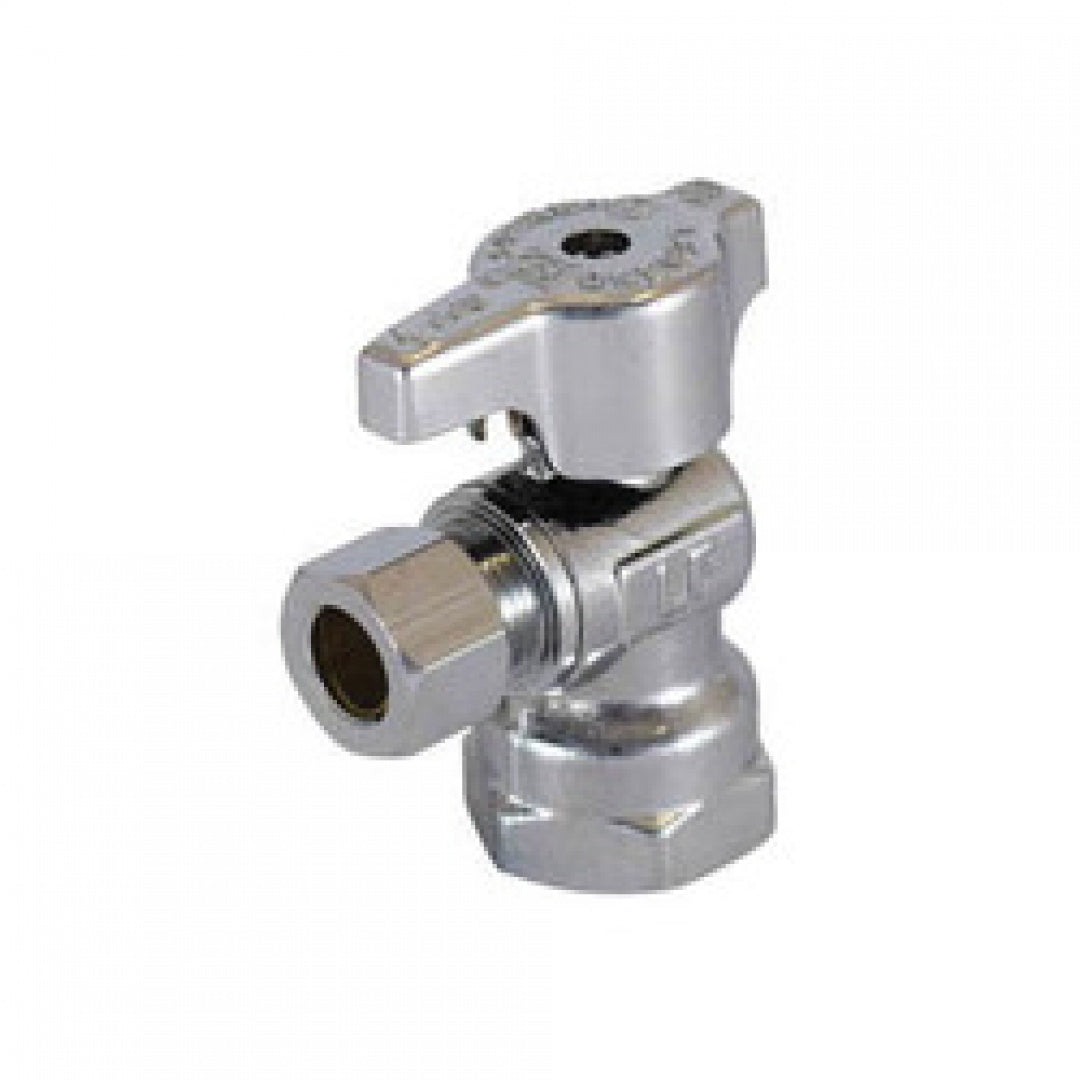

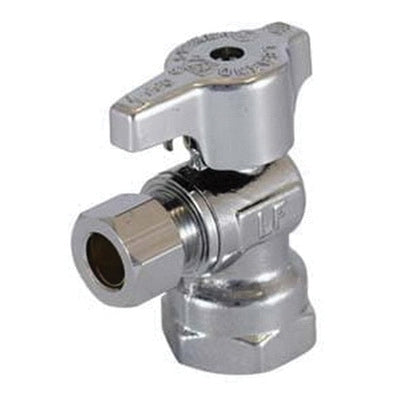

The Legend Valve 114-602NL T-595NL is a chrome-plated brass 1/4 turn angle stop valve. Designed for lead-free potable water installations, it complies with all lead-free plumbing laws. The self-cleaning ball valve resists mineral and scale build-up, ensuring shutoff and reopening. Ideal as an upgrade replacement for leaking stops.

• Lead free design suitable for potable water installations.
• Self-cleaning ball valve resists mineral and scale build-up.
• Compact, forged brass body for durability.

Product Highlights

This 1/4 turn angle stop valve features a brass body, EPDM trim, and FNPT x Compression end style.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 114-602NL
• Country of Origin: Import

Technical Specifications

• Body Material: Brass
• End Style: FNPT x Compression
• Finish: Polished Chrome
• Nominal Size: 3/8 in
• Pressure Rating: 125 psi
• Series: T-595NL
• Temperature Rating: 120 deg F
• Trim Material: Brass/EPDM
• Type: 1/4 Turn
• Manufacturer: LEGEND VALVE
• Connection Size: 3/8 in
• Connection Type: FNPT x OD
• Model: T-595NL
• Actuator Type: Handle
• Softgoods Material: EPDM Rubber Seat
