Legend Valve 113-435 T-750 S.S. Check Valve 1 in

Product Description

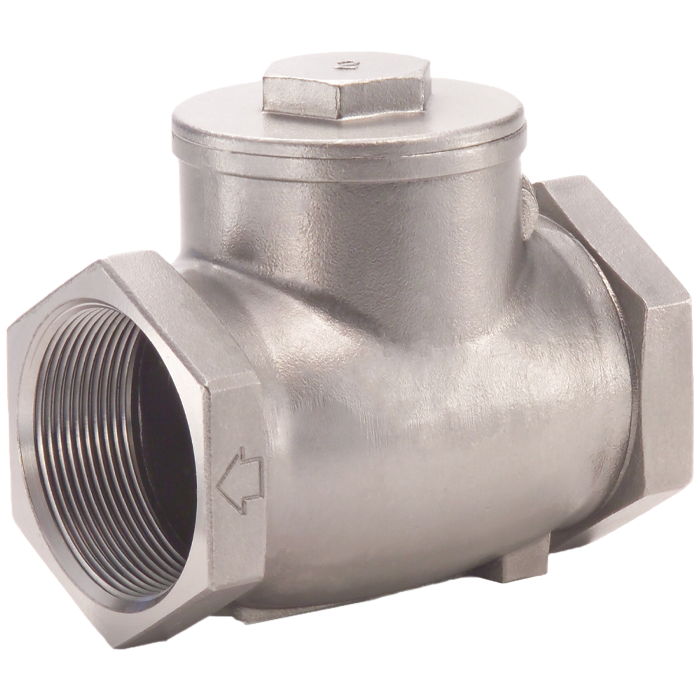

The LEGEND VALVE 113-435 T-750 S.S. Check Valve is a 1 inch nominal size valve with FNPT end style. Constructed with a 316 stainless steel body and trim, it is designed to withstand 600 lb WOG. The valve has an inlet to outlet length of 3.29 inches and a top to inlet center of 2 inches.

• Features a 316 stainless steel disc
• FNPT x FNPT configuration
• Lead free design

Product Highlights

The LEGEND VALVE 113-435 is ideal for applications requiring a durable, corrosion-resistant check valve. Suitable for various industrial and commercial plumbing systems.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 113-435
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Body Material: 316 Stainless Steel
• End Style: FNPT
• Inlet to Outlet Length: 3.29 in
• Nominal Size: 1 in
• Pressure Class: 600 lb WOG
• Series: T-750
• Top to Inlet Center: 2 in
• Trim Material: 316 Stainless Steel
• Standards: 125 WSP, 600 CWP
• Connection Type: FNPT x FNPT
• Country of Origin (subject to change): Taiwan, Province of China
• Brand: LEGEND VALVE
• MPN: 113-435
• Manufacturer: Legend Valve
• Item model number: T-750
• Product Type: Check Valve
