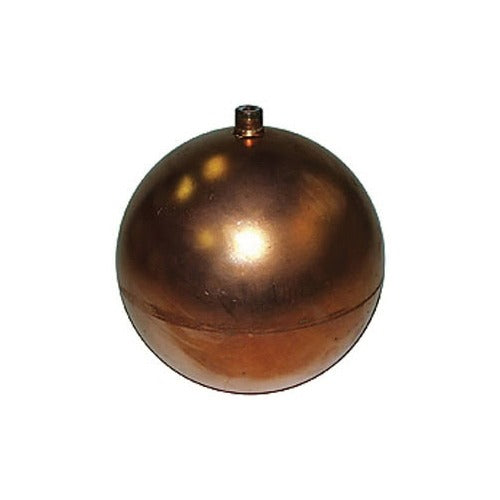

Legend Valve 111-263 Seamless Float Ball 5 Inch Copper

Product Description

The LEGEND VALVE 111-263 is a seamless copper float ball designed for use in float valve assemblies found in water supply systems, tanks, and cisterns. Measuring 5 inches in diameter with a 1/4-20 threaded connection, this float ball provides reliable water level sensing and control. The seamless construction eliminates weld seams that can become failure points over time, making it well suited for continuous immersion service. Plumbers and water system technicians install this type of component when servicing or replacing float-operated fill valves in both residential and light commercial applications.

This float ball is used in water storage tanks, livestock waterers, cooling tower makeup assemblies, and similar systems that rely on a mechanical float to control water level. The 1/4-20 threaded rod connection is a common standard size, allowing straightforward installation on compatible float valve arms. Domestic manufacture is noted for this part. Licensed plumbers and service technicians are the typical installers for this type of component.

Key Features

• Seamless copper construction eliminates weld-seam failure points during continuous immersion
• 5 inch diameter provides substantial buoyancy for reliable float valve actuation
• 1/4-20 threaded connection matches standard float valve rod sizing
• Copper material offers natural corrosion resistance in water supply service
• Domestically manufactured

Compatibility

Designed as an OEM-style replacement float ball for float valve assemblies using a standard 1/4-20 threaded rod connection in residential and commercial water tank applications.

Installation Notes

Installation is typically performed by a licensed plumber or qualified service technician. Shut off the water supply and relieve system pressure before removing the existing float ball. Thread the 111-263 onto the float valve arm rod by hand, then verify the connection is snug and the float moves freely through its full range of travel. Check for leaks and confirm proper water level shutoff after restoring water supply.

Technical Specifications

• Diameter: 5 inches
• Thread Size: 1/4-20
• Material: Copper
• Construction: Seamless
• Origin: Domestic

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 111-263
