Legend Valve 110-243 T-435YB Radiator Gate 1/2 inches

Product Description

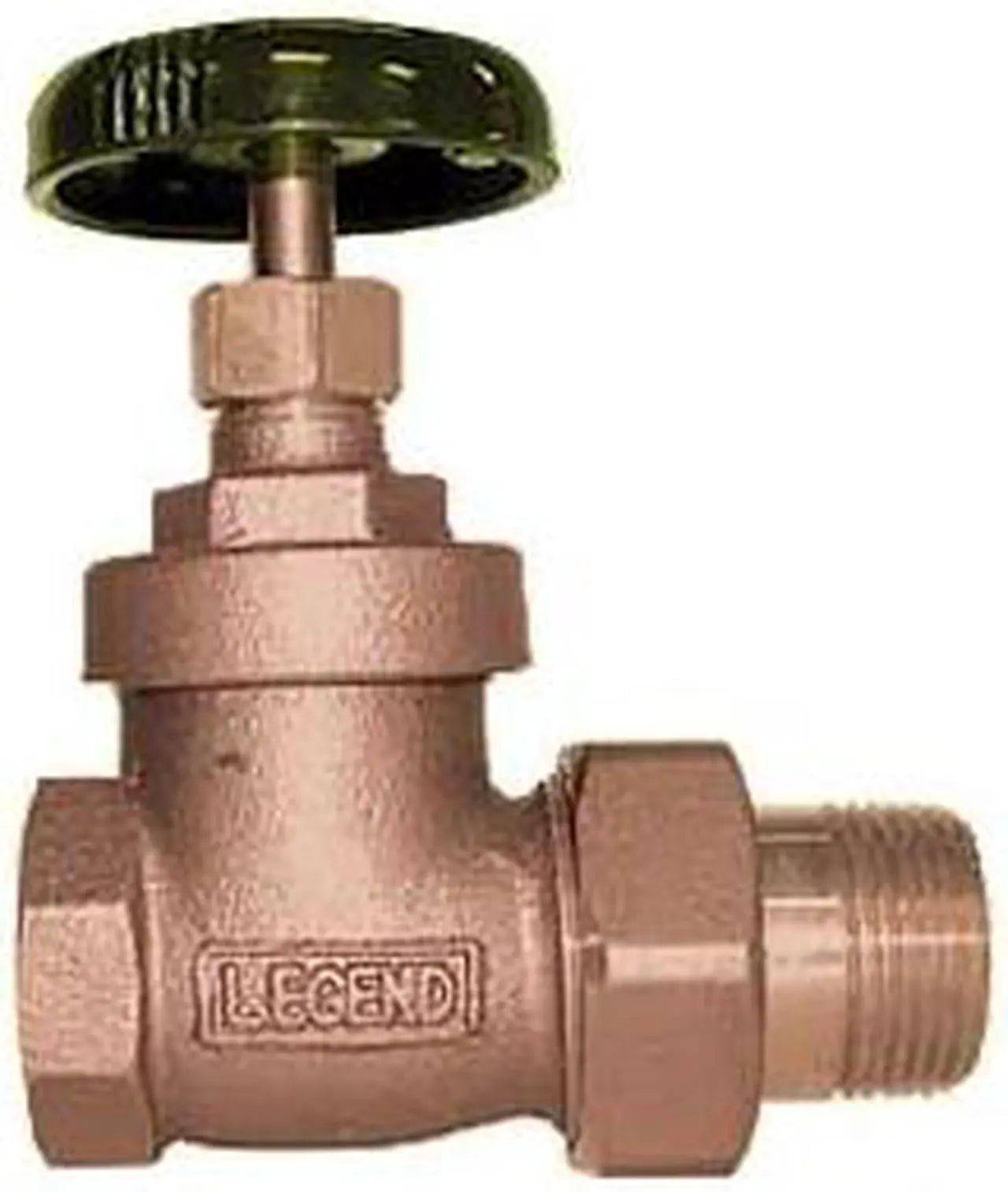

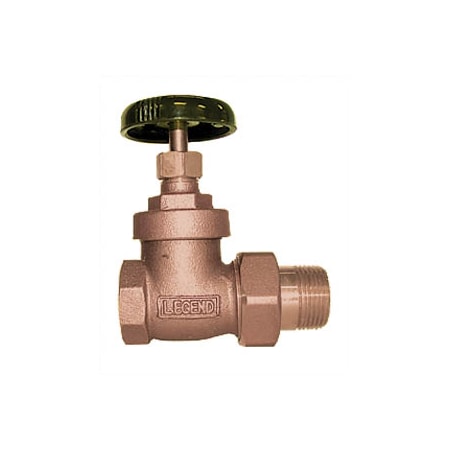

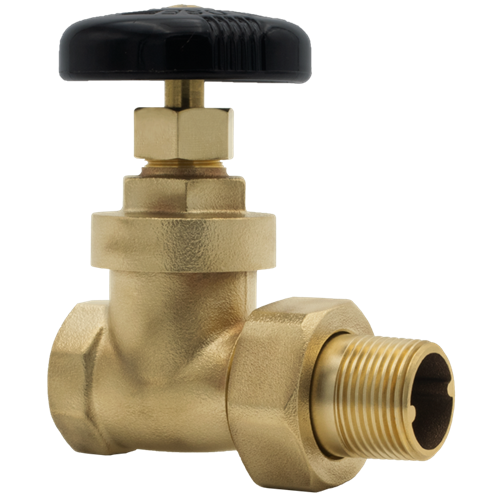

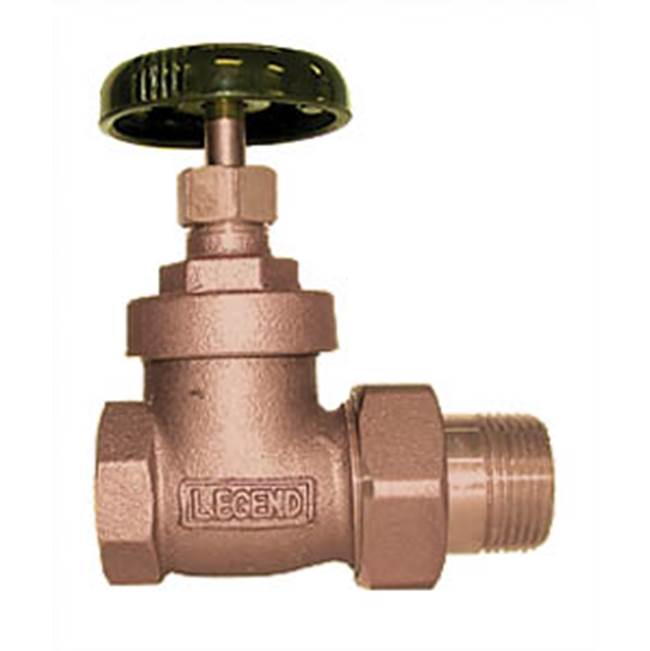

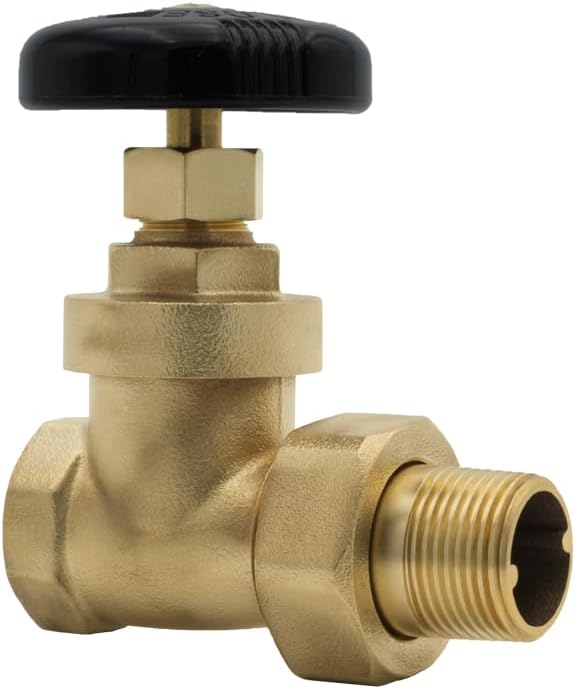

The LEGEND VALVE 110-243 is a T-435YB Series Steam Radiator Gate Valve, featuring a 1/2 inch nominal size with MNPT x FNPT end style connections. It is designed for steam applications, rated for 120 psi WSP pressure, and operated by a handle actuator. Constructed with a yellow brass body and forged brass trim, it includes PTFE packing for sealing. This import product is suitable for various radiator systems.

• Rated for 120 psi WSP and 200 psi WOG pressure.
• Features a durable yellow brass body with forged brass trim.
• Equipped with a handle actuator and PTFE packing for reliable operation.

Product Highlights

Durable yellow brass radiator gate valve with handle operation, rated for 120 psi WSP.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 110-243
• Country of Origin: Import

Technical Specifications

• Actuator Type: Handle
• Body Material: Yellow Brass
• Domestic/Import: Import
• End Style: MNPT x FNPT
• Inlet to Outlet Length: 2.98 in
• Nominal Size: 1/2 inch
• Pressure Rating: 120 psi WSP / 200 psi WOG
• Series: T-435YB
• Softgoods Material: PTFE Packing
• Top to Inlet Center: 2.96 in
• Trim Material: Forged Brass
• Manufacturer: LEGEND VALVE
• UPC: 662545041735
• Product Type: Radiator Gate Valve
• Finish: No Finish Group
