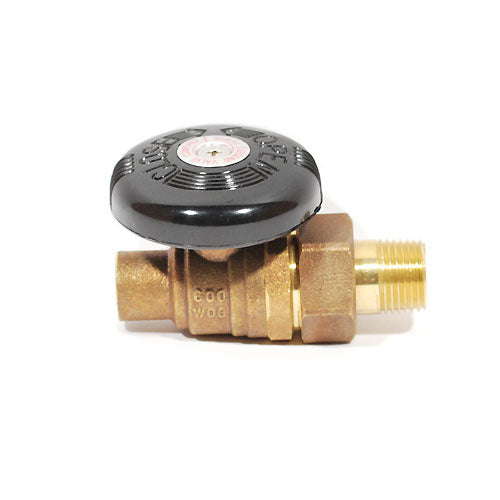

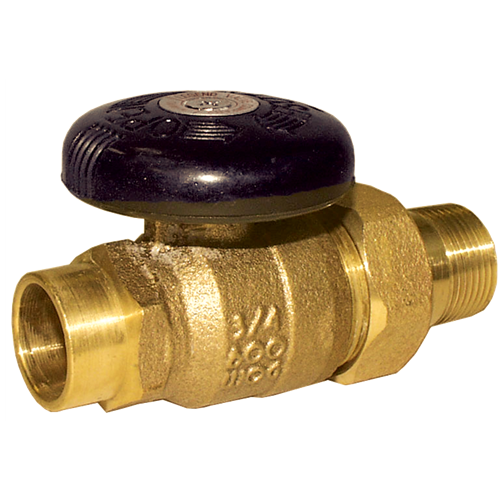

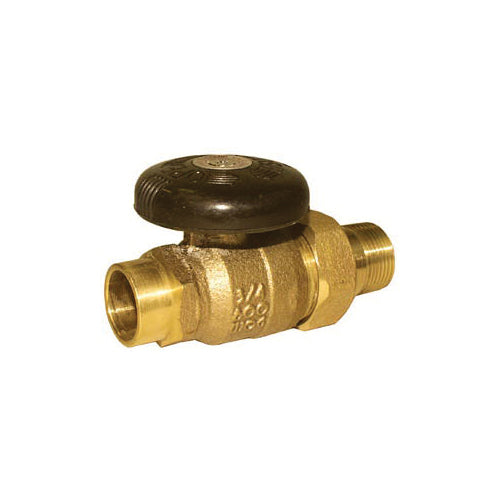

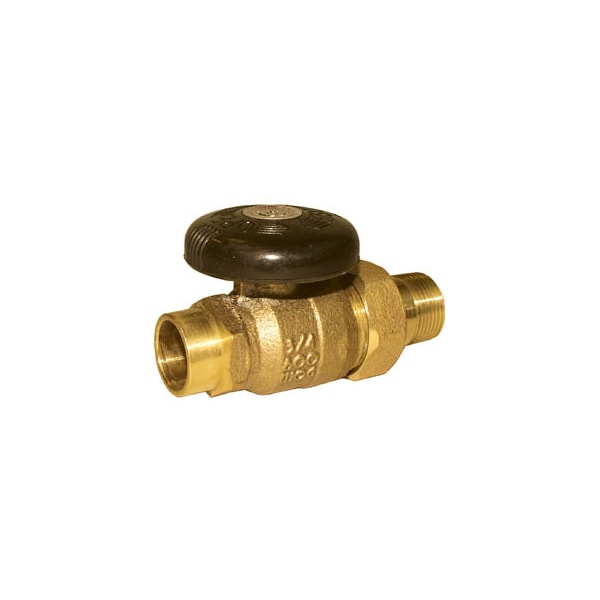

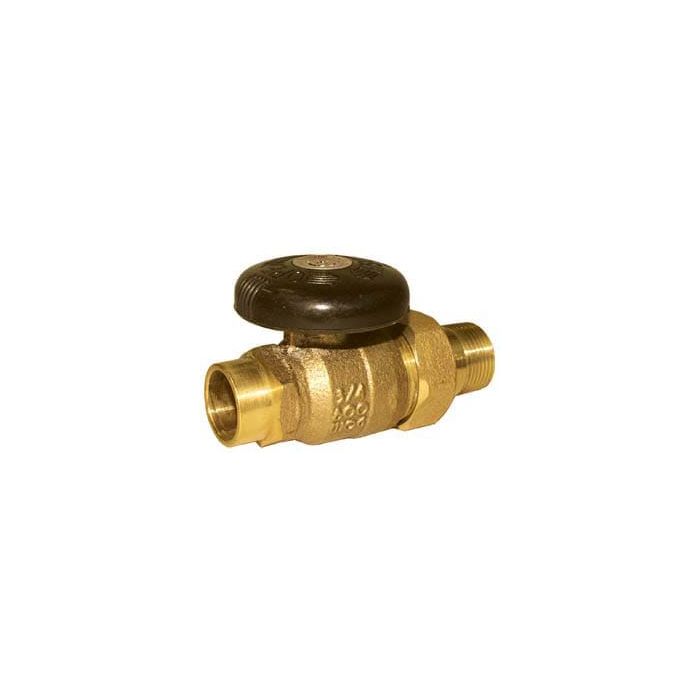

Legend Valve 110-218 S-425 Circulator Valve 3/4 in

Product Description

The LEGEND VALVE 110-218 is a S-425 series straight circulator valve with a 3/4 inch nominal size. Designed for gas, oil, and water media, it features a handle actuator and a bronze body with forged brass trim. It has a pressure rating of 600 psi and compression end style.

• Straight-way fittings are constructed of heavy duty bronze
• Male union, provide 100% shut-off and 1/4-turn flow control
• For use on forced hot water heating systems up to 60 lbs

Product Highlights

The valve offers 1/4-turn flow control and is suitable for residential, commercial, and industrial applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 110-218
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Actuator Type: Handle
• Body Material: Bronze
• End Style: Compression
• Media: Gas/Oil/Water
• Nominal Size: 3/4 in
• Pressure Rating: 600 psi
• Series: S-425
• Softgoods Material: PTFE Seat, Stem Packing
• Trim Material: Forged Brass
• Type: Straight
• Manufacturer: LEGEND VALVE
• Model: S-425
• Material: Bronze
• Connection: Sweat
