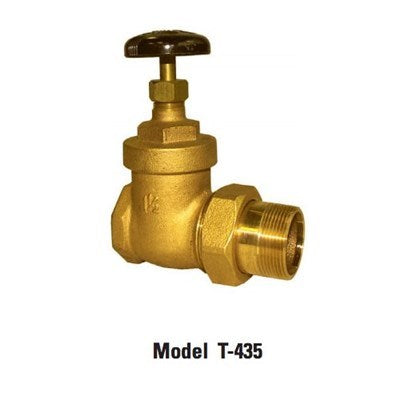

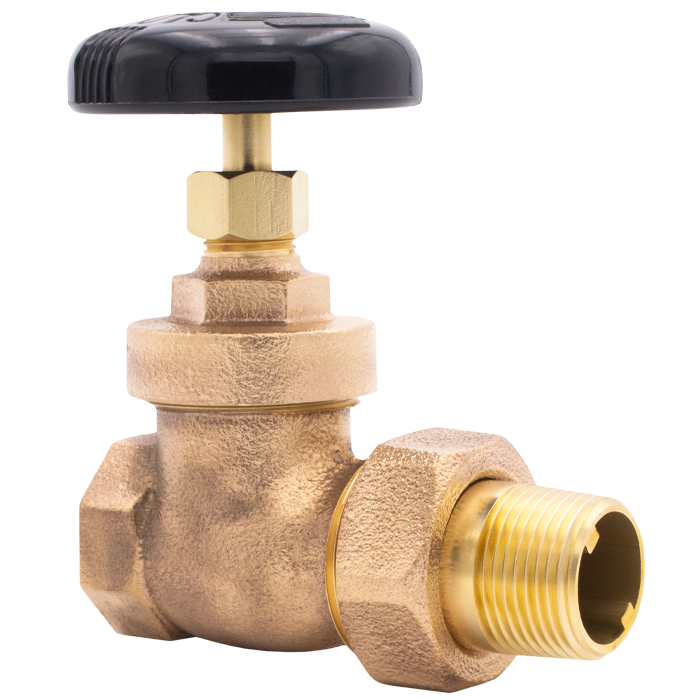

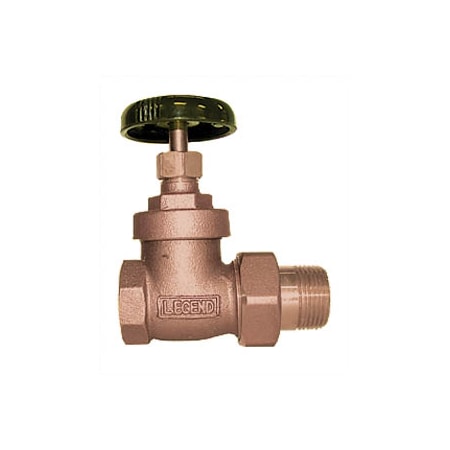

Legend Valve 110-134 T-435 radiator gate valve 200 psi 3/4 inch straight

Product Description

The LEGEND VALVE 110-134 is a heavy-duty T-435 Radiator Gate Valve designed for various media including gas, oil, steam, and water. This 3/4 inch nominal valve features MNPT x FNPT end styles and is rated for 200 psi pressure. Constructed from bronze with forged brass trim, it ensures durability and reliable performance in demanding applications. The valve incorporates an EPDM disc and PTFE packing for effective sealing.

• Constructed of heavy duty bronze, have a screwover bonnet non-rising stem, solid wedge disc and integral seats
• Each valve is tested twice - air under water, in the open and closed position
• Union nut, tailpiece are made of bronze, phenolic handle steel handle screw

Product Highlights

Heavy-duty bronze construction, 200 psi pressure rating, suitable for gas, oil, steam, and water applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 110-134
• Country of Origin: Import

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• End Style: MNPT x FNPT
• Inlet to Outlet Length: 3.54 in
• Media: Gas/Oil/Steam/Water
• Nominal Size: 3/4 in
• Pressure Rating: 200 psi
• Series: T-435
• Softgoods Material: EPDM Disc/PTFE Packing
• Top to Inlet Center: 3.46 in
• Trim Material: Forged Brass
• Type: Heavy Duty
• Standards: 125 WSP, 200 CWP
• Product Type: Straight Radiator Valve
