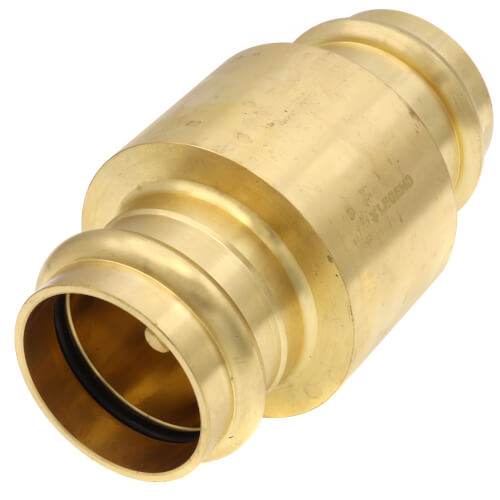

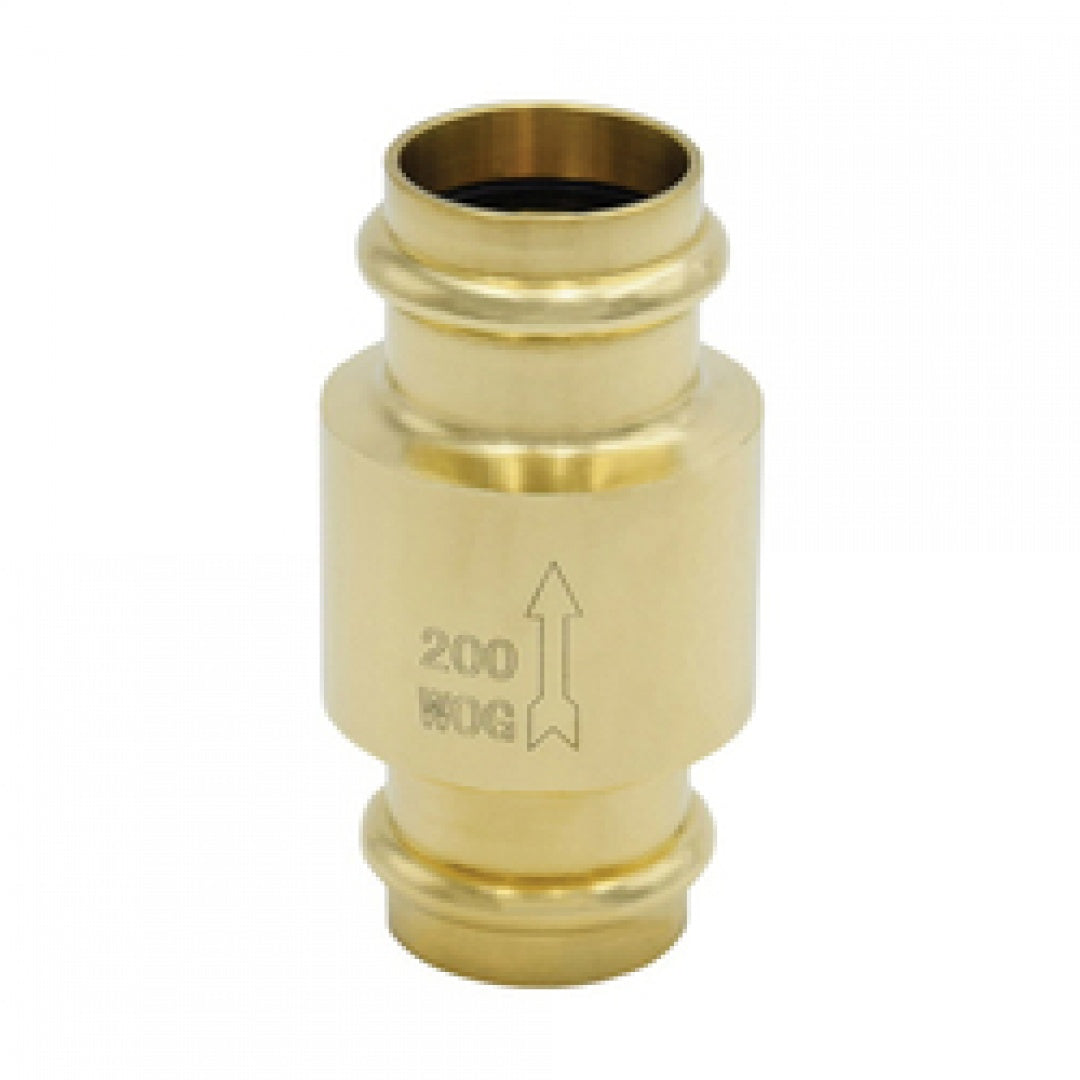

Legend Valve 105-457NL 1-1/2 P-450NL Press Inline Check Valve

Product Description

Legend Valve MPN 105-457NL is a 1-1/2 inch P-450NL Press Inline Check Valve. Designed for plumbing systems, this valve allows water flow in one direction, ensuring proper system functionality while preventing backflow.

• Integral seat and disc ensure tight closure
• Operates quietly with EPDM seat
• Suitable for vertical or horizontal installation

Product Highlights

This check valve features a press connection method suitable for ASTM B88 copper tubing types K, L, and M. The stainless steel spring and EPDM materials offer long-lasting durability. Note: Not recommended for use with coiled soft copper tubing.

Product Information

Standard Information

• Manufacturer: Legend Valve
• MPN: 105-457NL

Technical Specifications

• Nominal Size: 1-1/2 inches
• Body Material: Brass
• Trim Material: Stainless Steel/EPDM
• Softgoods Material: EPDM
• Inlet to Outlet Length: 4.69 inches
• Dimensions: 2.62 inches wide
• Pressure Rating: 200 psi CWP
• Temperature Rating: Up to 180 degrees F
