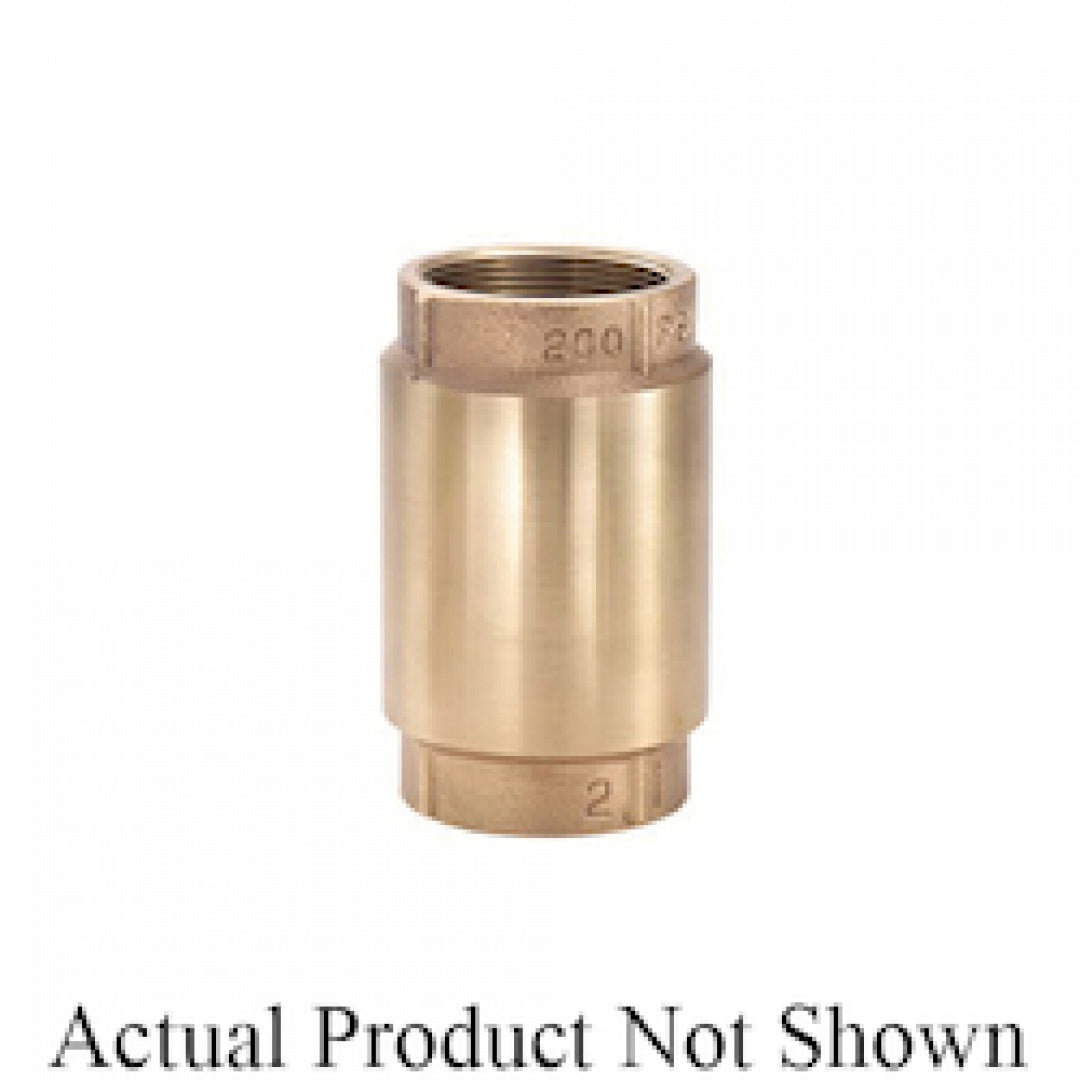

Legend Valve 105-423NL T-450 1/2 Inch No Lead In-Line Check Valve

Product Description

The Legend Valve 105-423NL model features a robust in-line spring check valve designed for installation in potable water systems. This model, crafted from lead-free cast bronze, ensures compliance with water safety regulations and is equipped for high-pressure operations up to 200 PSI CWP.

• Optimized for both horizontal and vertical installations to suit diverse plumbing layouts.
• Features a spring-loaded latch-lock handle actuator, guaranteeing a secure and efficient operation.
• Incorporates a fully-guided stem to prevent over-travel and potential piston failure, enhancing durability.

Product Highlights

Engineered with precision, the valve's body and disc are constructed from UNS Alloy C87850 cast bronze, offering superior resilience and longevity. Its spring mechanism made from AISI 304 stainless steel provides reliable performance under various temperature conditions up to 200 degrees Fahrenheit.

Technical Specifications

• Body Material: Cast Bronze
• End Connections: Female Threaded x Female Threaded, 1/2 Inch
• Pressure Rating: 200 PSI CWP
• Temperature Range: Up to 200 Degrees Fahrenheit
• Compliance Standards: ANSI/ASME B1.20.1, NSF/ANSI 372, ISO 9002
• Additional Features: Buna-N Rubber O-Ring, Celcon M90 Polyacetal Resin Stem Guide
