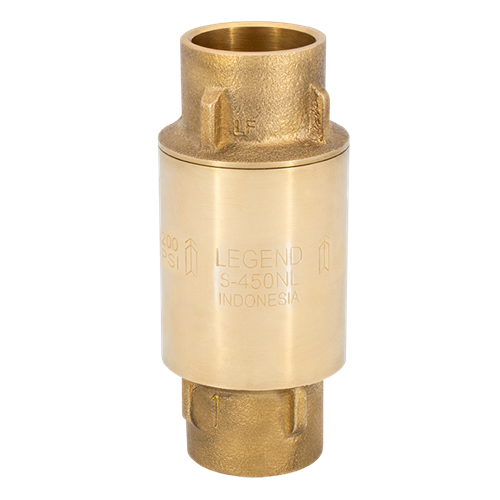

Legend Valve 105-415NL S-450NL Inline Checkvalve 1 inch

Product Description

The LEGEND VALVE 105-415NL is an S-450NL series in-line check valve, designed for reliable flow control in various applications. Constructed from durable cast brass, this 1-inch nominal valve features sweat x sweat end connections. It is rated for a maximum pressure of 200 psi and can withstand temperatures up to 250 degrees Fahrenheit, ensuring efficient operation.

• Durable cast brass body ensures longevity and resistance to corrosion.
• Features sweat x sweat end connections for secure and leak-free installation.
• Rated for 200 psi pressure and 250 deg F temperature, suitable for demanding conditions.

Product Highlights

A durable 1-inch S-450NL in-line check valve with cast brass construction, 200 psi pressure rating, and sweat connections for reliable flow control.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-415NL
• Country of Origin: Imported

Technical Specifications

• Body Material: Cast Brass
• End Style: Sweat x Sweat
• Inlet to Outlet Length: 1.77 in
• Nominal Size: 1 in
• Pressure Rating: 200 psi
• Series: S-450NL
• Temperature Rating: 250 deg F
• Top to Inlet Center: 4.08 in
