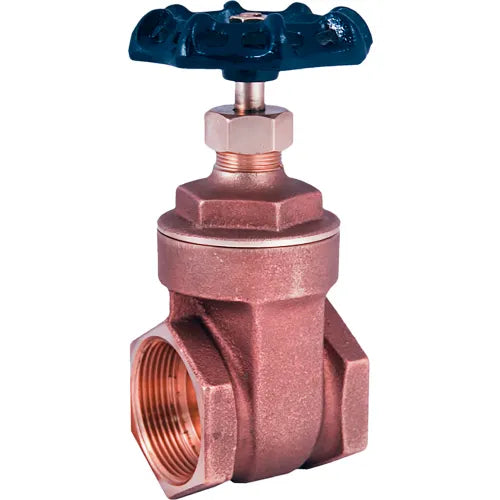

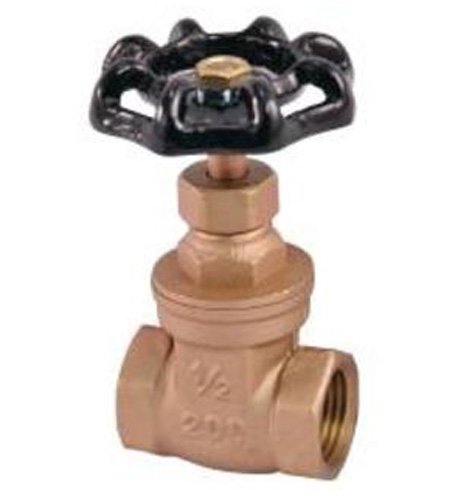

Legend Valve 104-708NL T-408nl Non-Rising Stem Gate Valve, No Lead Brass, 2 inches Threaded

Product Description

The Legend Valve 104-708NL T-408nl non-rising stem gate valve is ideal for residential or commercial potable water applications. It features a durable, all-brass body construction and a heavy cast iron handwheel. The full-flow waterway reduces pressure drop, permitting consistent flow. This valve is not suitable for steam service.

• Durable, all-brass body construction and heavy cast iron handwheel
• Full-flow waterway reduces pressure drop, permitting consistent flow
• Non-rising stem design is compact and reliable

Product Highlights

This 2 inch, no lead brass, economy gate valve has a solid, fully-guided disc-wedge that opens completely out of the flow path.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 104-708NL
• Country of Origin: Indonesia

Technical Specifications

• Brand: Legend Valve
• Material: Brass
• Size: 2
• Valve Type: Gate Valve
• Configuration: FNPT x FNPT
• Connection Style: FNPT
• Manufacturers Part Number: 104-708NL
• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: FNPT
• Hand Wheel Diameter: 3.7 in
• Inlet to Outlet Length: 2.68 in
• Nominal Size: 2 in
• Pressure Rating: 200 psi CWP
• Series: T-408NL
• Top to Inlet Center: 5.99 in
• Trim Material: Brass
• Standards: 200 CWP
• Standard Approvals: ANSI B1.20.1, ASME B1.20.1/B16.18, ASTM B806 UNS C89540, IAPMO file No 6127, ISO Certified
