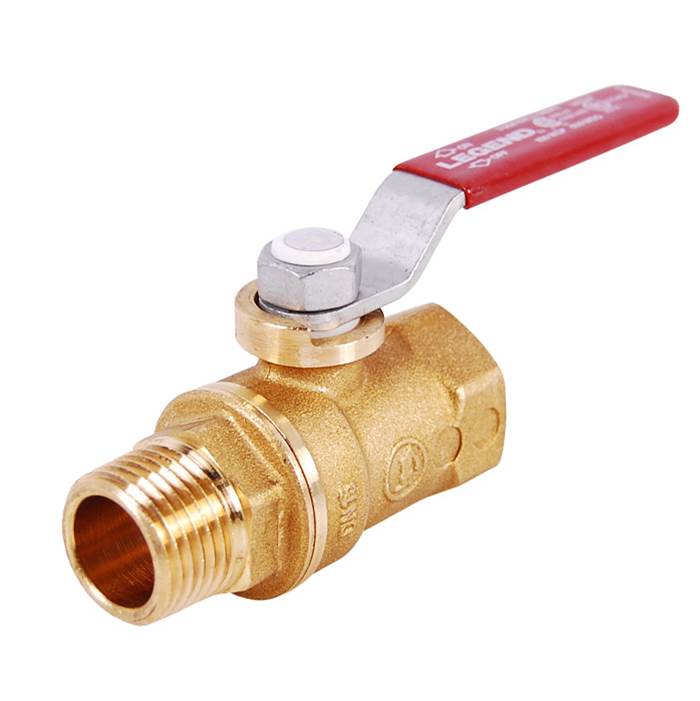

Legend Valve 101-521 1/4 T-900 MXF Ball Valve

Product Description

The Legend Valve 101-521 is a 1/4 T-900 MXF ball valve designed for various plumbing applications. It features male national pipe threads on one end and female national pipe threads on the other, making it versatile for different installations. This valve is suitable for media such as oil, steam, and water.

• Forged brass construction for durability
• Lever-operated actuator for ease of use
• Pressure rating of 600 psi

Product Highlights

This product is ideal for confined piping installations, providing efficient flow control and sealing capabilities.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer: Legend Valve

Technical Specifications

• MPN: 101-521
• Nominal Size: 1/4 in
• End Style: MNPT x FNPT
• Flow Rate: 7.63 gpm
• Pressure Rating: 600 psi
• Body Material: Brass
• Ball Material: Forged Brass
• Trim Material: Brass Stem and PTFE Seat
• Dimensions: 2.86 in W x 1.44 in H
• Softgoods Material: TFM/PTFE
• Inlet to Outlet Length: 1.95 in
• Top to Inlet Center: 1.06 in
• Series: T-900MxF
• Actuator Type: Lever Operated
• Media: Oil/Steam/Water
• Port Type: Large
• Domestic/Import: Import
