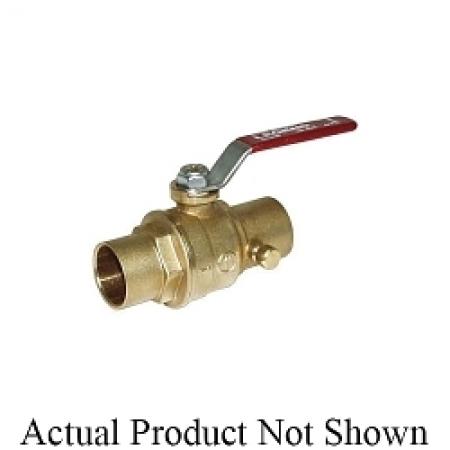

LEGEND VALVE 101-514 3/4 S-1100 BALL VALVE

Product Description

The LEGEND VALVE 101-514 is a 3/4 inch S-1100 ball valve designed for plumbing applications. This valve is made from lead-free materials, making it suitable for potable water systems. It features a durable forged brass body and a 316 stainless steel ball which ensures reliable performance.

• Pressure rating of 500 psi CWP
• Full port design allows for maximum flow
• Allows for draining the line for maintenance

Product Highlights

This ball valve is easy to install and provides a tight seal, preventing leaks. It is not suitable for steam service.

Product Information

Standard Information

• Manufacturer: LEGEND VALVE
• Nominal Size: 3/4 in

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: C
• Inlet to Outlet Length: 3.15 in
• Port Type: Full
• Pressure Rating: 500 psi CWP
• Series: S-1100
• Top to Inlet Center: 1.87 in
• Trim Material: Polished Chrome Forged Brass Stem and TFM PTFE Seat
