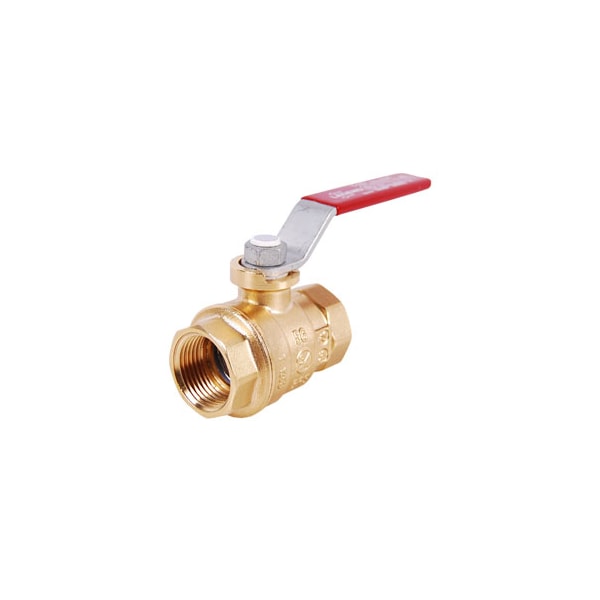

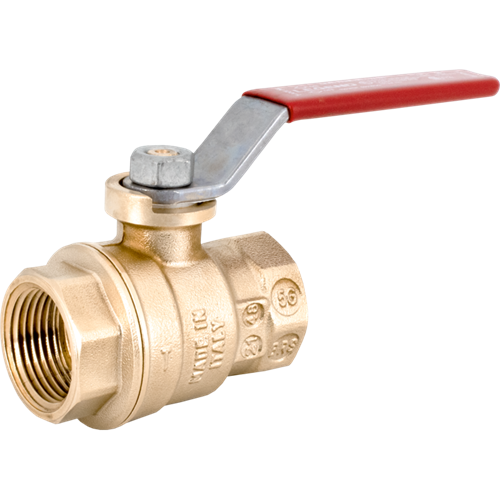

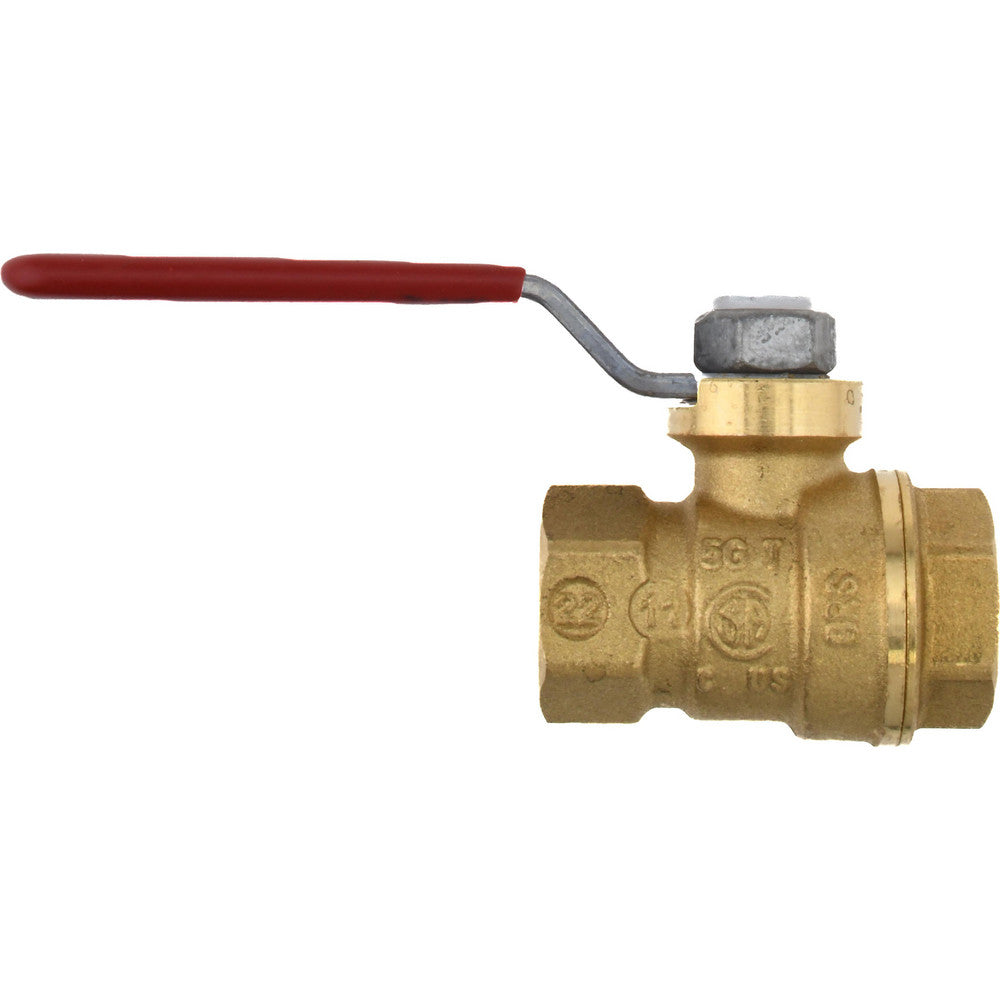

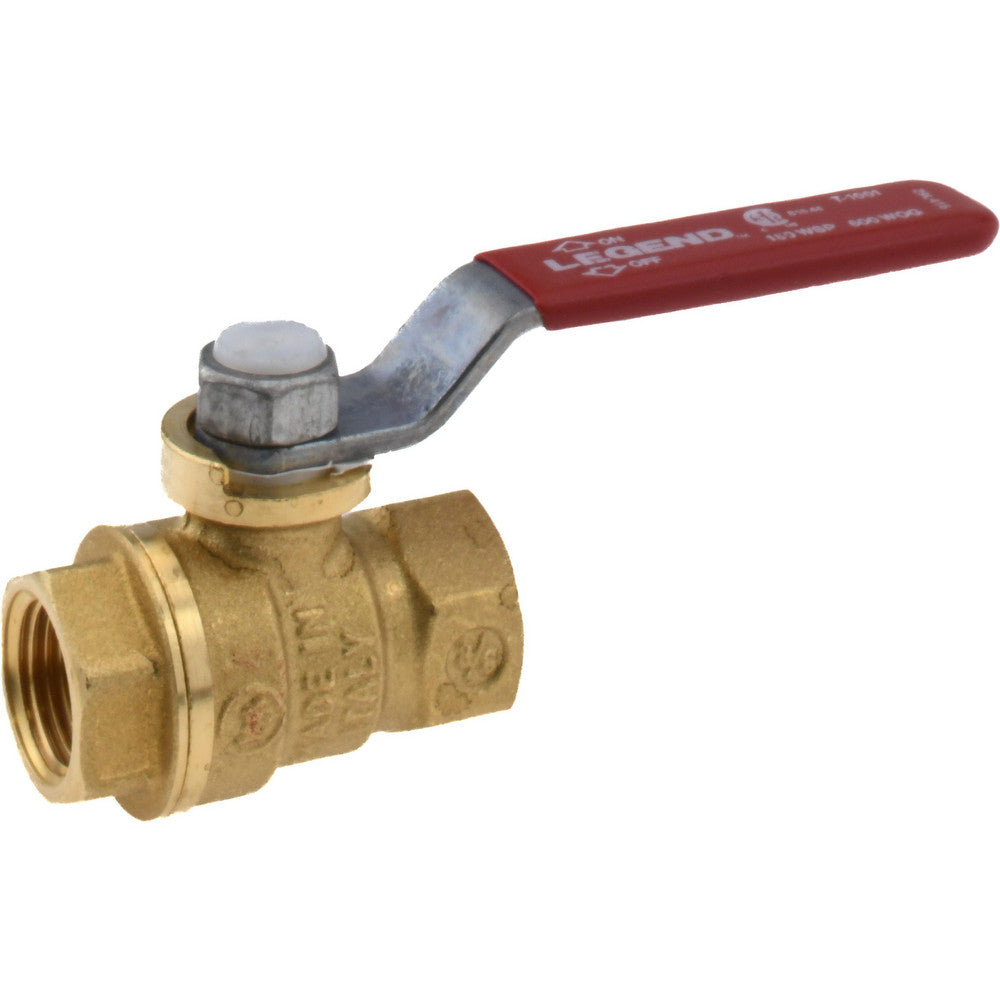

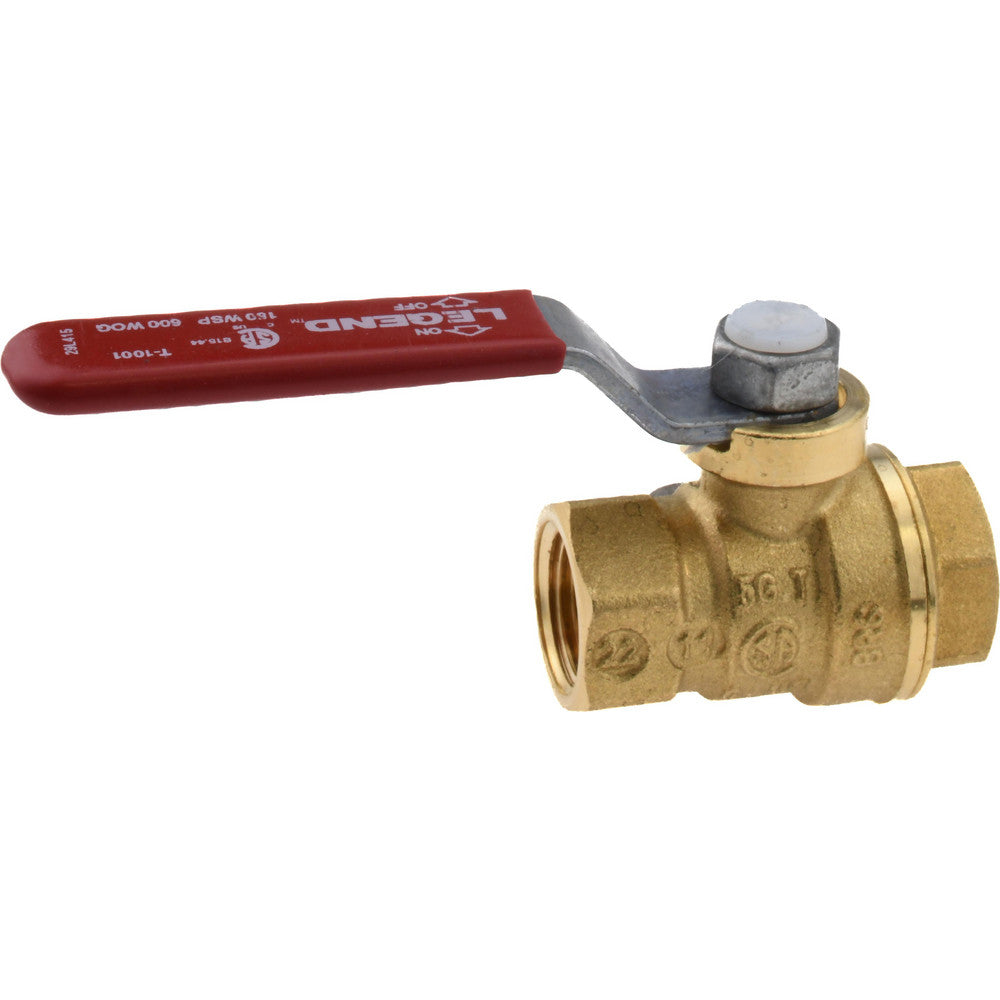

Legend Valve 101-102 Ball Valve 3/8 inches FNPT

Product Description

The LEGEND VALVE 101-102 is a ball valve with a 3/8 in nominal FNPT. It features a durable forged brass body and a bottom-loaded, blow-out proof stem. The valve also has maintenance-free dual O-Ring stem seal and improved Dyneon® TFM PTFE seats. Suitable for various plumbing and industrial applications.

• Durable forged brass body
• Bottom loaded Blow-out proof stem
• Maintenance-free dual O-Ring stem seal

Product Highlights

The LEGEND VALVE ball valve is designed for reliability and longevity, ensuring consistent performance in demanding environments.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-102
• Country of Origin: Italy

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• End Style: FNPT
• Inlet to Outlet Length: 1.77 in
• Nominal Size: 3/8 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: T-1001
• Top to Inlet Center: 1.28 in
• Trim Material: Polished Chrome Forged Brass Stem and TFM PTFE Seat
• Manufacturer: LEGEND VALVE
• Standards: 150 WSP, 400 CWP (2-1/2"), 600 CWP
• Connection Type: FNPT x FNPT
• Size: 3/8"
• Configuration: FNPT x FNPT
• Valve Type: Ball; Standard
• Handle Type: Lever
• Steam Pressure Rating (psi): 150
• Seat Material: Polytetrafluroethylene
• Part #: 101-102
• Category: Ball Valve
• Pipe Size: 3/8 in
