Legend Valve 101-089NL 2-1/2 S1002 CXC FPBV

Product Description

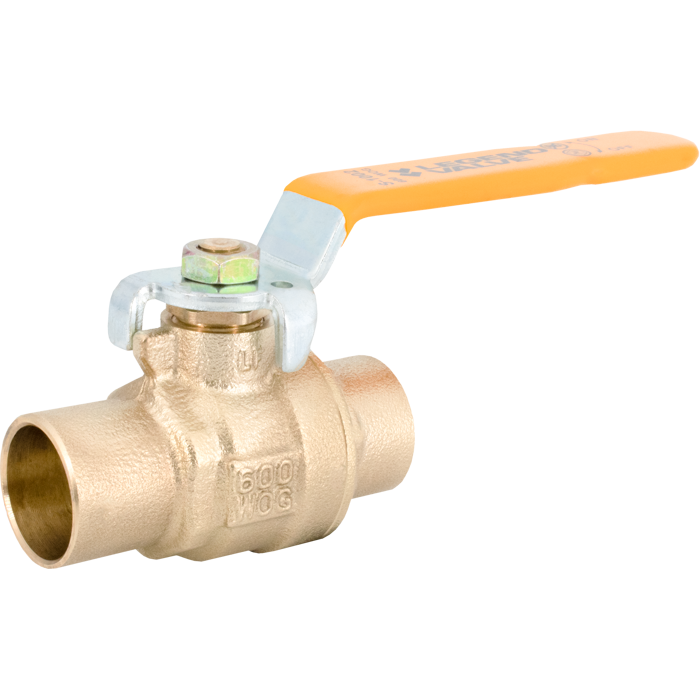

The LEGEND VALVE 101-089NL is a 2-1/2 S1002 CXC FPBV. This lead-free ball valve, part of the S-1002NL series, features a full port and is suitable for no-lead potable water installations. It has a polished chrome forged brass ball and durable PTFE seats. The valve is designed with a bottom-loaded, blow-out proof stem.

• Lead free design compliant with all Lead free plumbing laws
• Bottom loaded, blow-out proof stem with PTFE packing gland and forged brass packing nut
• Self-cleaning forged brass ball is chrome plated, to resist scale build-up

Product Highlights

Lead-free forged brass ball valve with full port, suitable for potable water systems, featuring a blow-out proof stem and PTFE seats.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-089NL
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: C
• Inlet to Outlet Length: 6.22 in
• Nominal Size: 2-1/2 in
• Port Type: Full
• Pressure Rating: 400 psi CWP
• Series: S-1002NL
• Top to Inlet Center: 3.86 in
• Trim Material: Forged Brass Stem and PTFE Seat
• Manufacturer: LEGEND VALVE
• Size: 2-1/2"
• Configuration: Sweat x Sweat
• Connection Type: Sweat x Sweat
