Legend Valve 101-065 T-1002 Ball Valve 600 psi CWP 1 Inch

Product Description

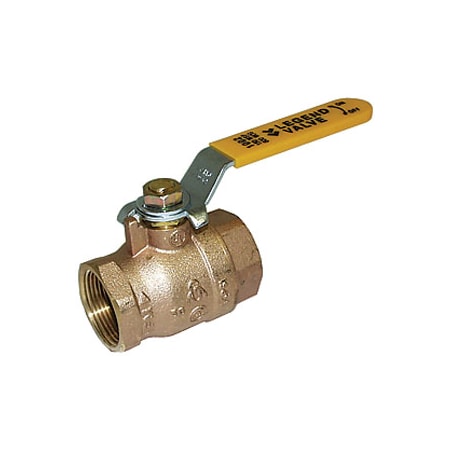

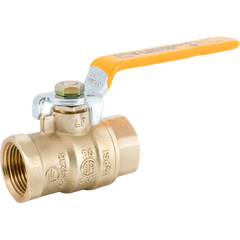

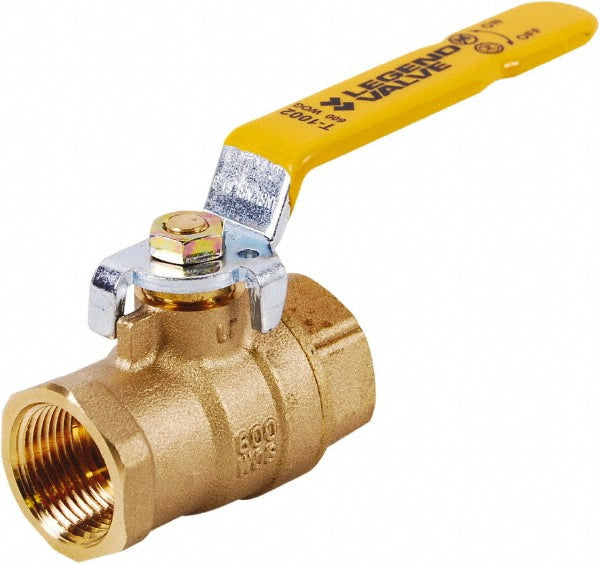

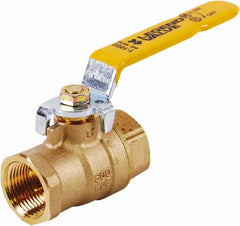

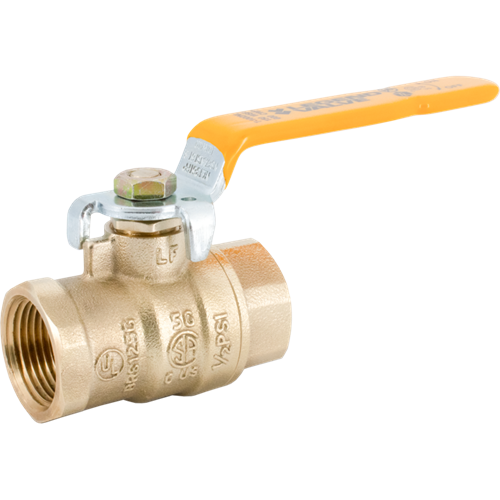

The LEGEND VALVE 101-065 T-1002 Ball Valve is a 1 inch nominal, full port valve featuring FNPT x FNPT end connections. Constructed with a durable forged brass body and a polished chrome forged brass ball, this two-way valve is designed for media such as natural gas, LP gas, air mixtures, potable water, grease, and fuels. It is rated for 600 psi CWP pressure and includes a forged brass stem with PTFE seat trim, ensuring reliable operation.

• Durable forged brass body construction.
• Bottom loaded, PTFE isolated, blow-out proof stem.
• Adjustable gland follower stem design.

Product Highlights

Certified by cCSAus, FM Approved, and UL Listed, this valve offers a 150 psi steam working pressure.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-065
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Country of Origin: Taiwan, Province of China
• End Style: FNPT x FNPT
• Inlet to Outlet Length: 2.99 in
• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures, Potable Water, Grease, Fuels
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: T-1002
• Top to Inlet Center: 2.13 in
• Trim Material: Forged Brass Stem and PTFE Seat
• Manufacturer: LEGEND VALVE
• Steam Pressure Rating: 150 psi
• Valve Type: Two-Way; Ball
• Valve Structure: 2-Piece
• Handle Type: Lever
• Handle Material: Steel
• Certifications: cCSAus, FM Approved, UL Listed, NSF, CSA
