Legend Valve 101-064 3/4 inches T-1002 Ball Valve

Product Description

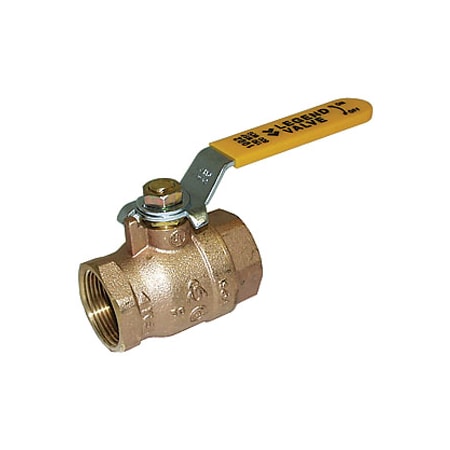

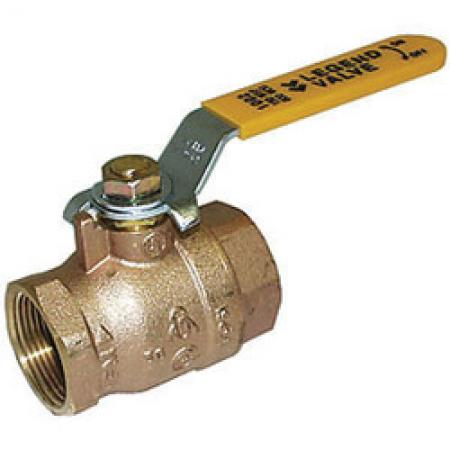

The LEGEND VALVE 101-064 is a T-1002 series ball valve with a 3/4 in nominal FNPT end style. Designed for shutoff duties in commercial and industrial fluid control applications, it handles media such as natural, manufactured, and mixed LP gas/air mixtures. It features a forged brass body and a polished chrome forged brass ball and a full port.

• Durable forged brass body
• Bottom loaded, PTFE isolated, blow-out proof stem
• Adjustable gland follower stem design

Product Highlights

This ball valve has a full port and is suitable for various fluid control applications with a pressure rating of 600 psi CWP.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-064
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• End Style: FNPT
• Inlet to Outlet Length: 2.52 in
• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: T-1002
• Top to Inlet Center: 1.97 in
• Trim Material: Forged Brass Stem and PTFE Seat
• Standards: 150 WSP, 600 CWP
• Connection Type: FNPT x FNPT
