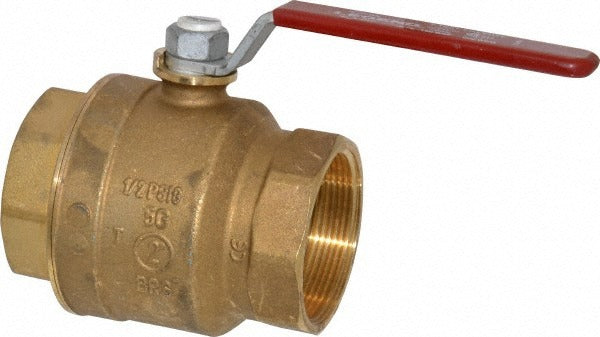

Legend Valve 101-028 Full Port Ball Valve 2 Inch Fnpt

Product Description

The LEGEND VALVE 101-028 is a standard manual ball valve designed for full-port flow control in plumbing and mechanical piping systems. Built with a brass body and brass trim, this valve handles 2-inch pipe connections using female NPT (FNPT) threads on both ends. The full-port design minimizes pressure drop across the valve, making it well-suited for applications where flow efficiency matters. A lever handle provides quick quarter-turn operation for shutoff or isolation. This valve is typically installed by licensed plumbers and pipefitters working on commercial or residential mechanical systems.

This valve is used in a wide range of plumbing, HVAC hydronic, and general mechanical piping applications where a reliable manual shutoff is required. The FNPT x FNPT end connections allow direct threaded installation into standard 2-inch pipe runs. Full-port construction means the internal bore matches the pipe diameter, keeping friction loss low. Common install scenarios include boiler supply and return lines, chilled water systems, domestic water mains, and industrial fluid handling.

Key Features

• Full-port design maintains full pipe bore diameter for minimal flow restriction
• Brass body and brass trim for corrosion resistance in water and compatible fluid service
• PTFE (polytetrafluoroethylene) seat material provides durable, low-friction sealing
• FNPT x FNPT end connections for standard threaded pipe installation
• Lever handle allows fast quarter-turn open and close operation
• 2-inch pipe size suits main line and large branch applications

Compatibility

Designed as an OEM-style replacement or new-installation manual ball valve for 2-inch threaded pipe systems in residential and commercial plumbing and mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and the IPC. Shut off and depressurize the system and drain the line before removing or installing any valve. Apply thread sealant or PTFE tape to male NPT threads before making up connections. Do not over-tighten threaded joints, as this can damage the valve body or fittings.
