Legend 101-208NL 2 P-201NL Legend-Press Red

Product Description

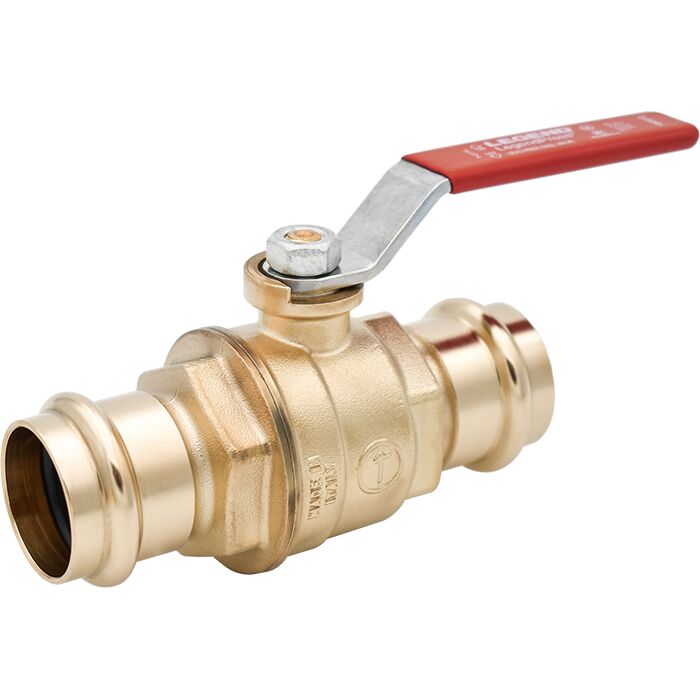

The Legend 101-208NL is a ball valve designed for professionals in plumbing. This valve features a two-inch nominal size with a press end style, suitable for use in various plumbing systems. It is crafted from chrome plated forged brass, making it reliable for high-pressure applications.

• Rated for a maximum pressure of 400 psi.
• Temperature tolerance of up to 250 degrees Fahrenheit.
• Compatible with ASTM B88 types K, L, and M hard-drawn copper tubing.

Product Highlights

The Legend 101-208NL ball valve is engineered for easy installation and durability. It is designed for pressing onto various types of copper tubing, ensuring a secure and leak-free connection.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Series: P-201NL

Technical Specifications

• Ball Material: Chrome Plated Forged Brass
• Body Material: Forged Brass
• End Style: Press
• Nominal Size: 2 in
• Inlet to Outlet Length: 7.04 in
• Top to Inlet Center: 3.08 in
• Pressure Rating: 400 psi
• Temperature Rating: 250 deg F
• Trim Material: PTFE
• Domestic/Import: Import
• Port Type: Full
