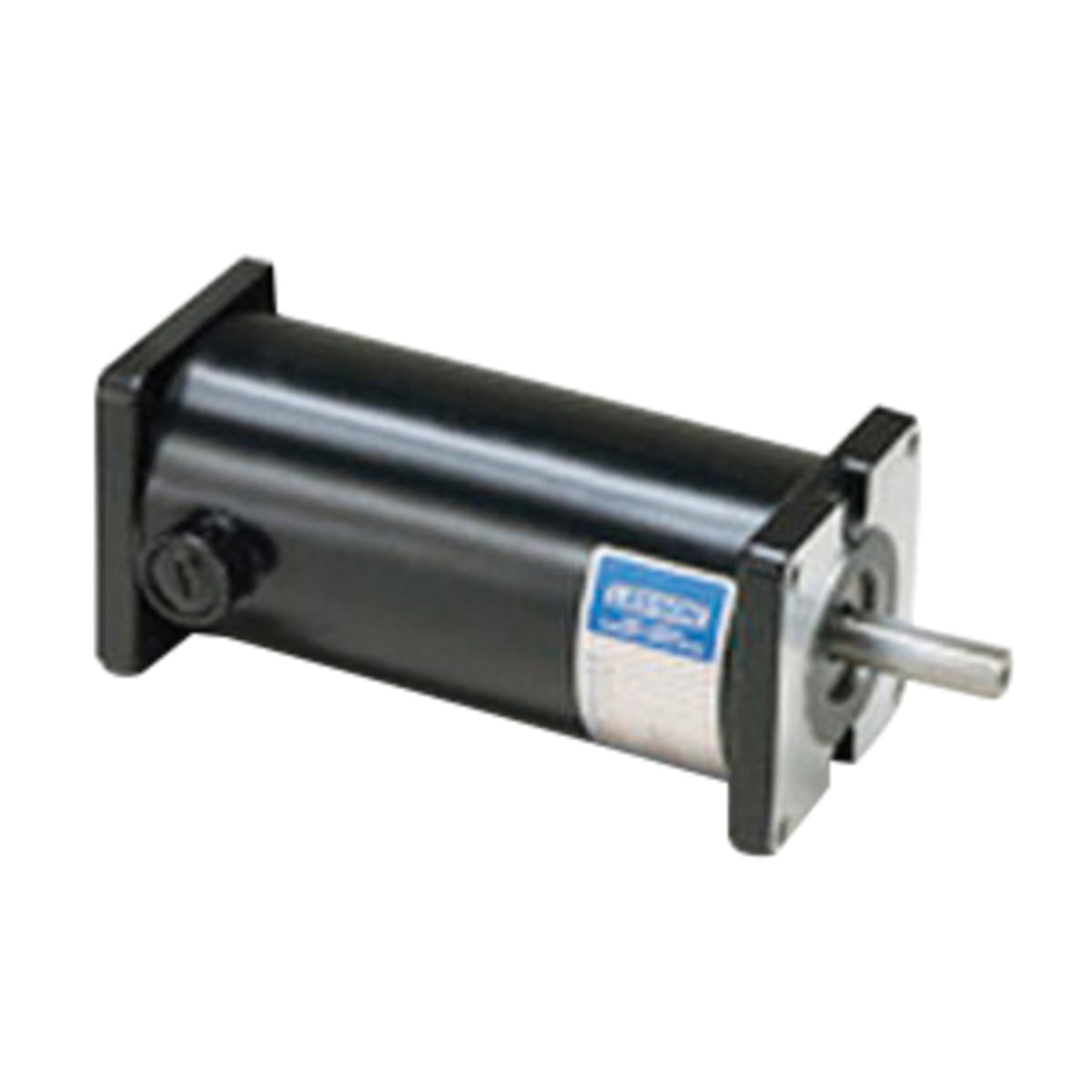

LEESON M1110015.00 DC Motor Continuous Duty Precision Sub-FHP 25 Frame

Product Description

LEESON DC Motor, MPN: M1110015.00, is a Continuous Duty Precision Sub-FHP motor with a torque rating of nineteen point two inch-ounce. It features a power rating of zero point zero five kilowatt and operates on ninety VDC at zero point seven amps. This motor has a speed of three thousand five hundred RPM and is perfect for various commercial and industrial applications.

• Compact design with a totally enclosed non-ventilated housing.
• Reversible rotation for versatile applications.
• Features a service factor of one and ball bearing support.

Product Highlights

This motor is ideal for tasks requiring stable performance under constant duty conditions.

Product Information

Standard Information

• Brand: LEESON
• Type: Continuous Duty Precision Sub-FHP

Technical Specifications

• Power Rating: 0.05 kW
• Torque Rating: 19.2 in-oz
• Speed Rating: 3500 RPM
• Voltage Rating: 90 VDC
• Amperage Rating: 0.7 A
• Frame Size: 25
• Material: Rolled Steel
• Enclosure Type: Totally Enclosed Nonvented (TENV)
• Shaft Size: 0.31 in Dia x 1.5 in L
• Dimensions: 5.58 in L x 3 in W x 2.624 in H
• Temperature Rating: 40 °C
• Insulation Class: Class F
