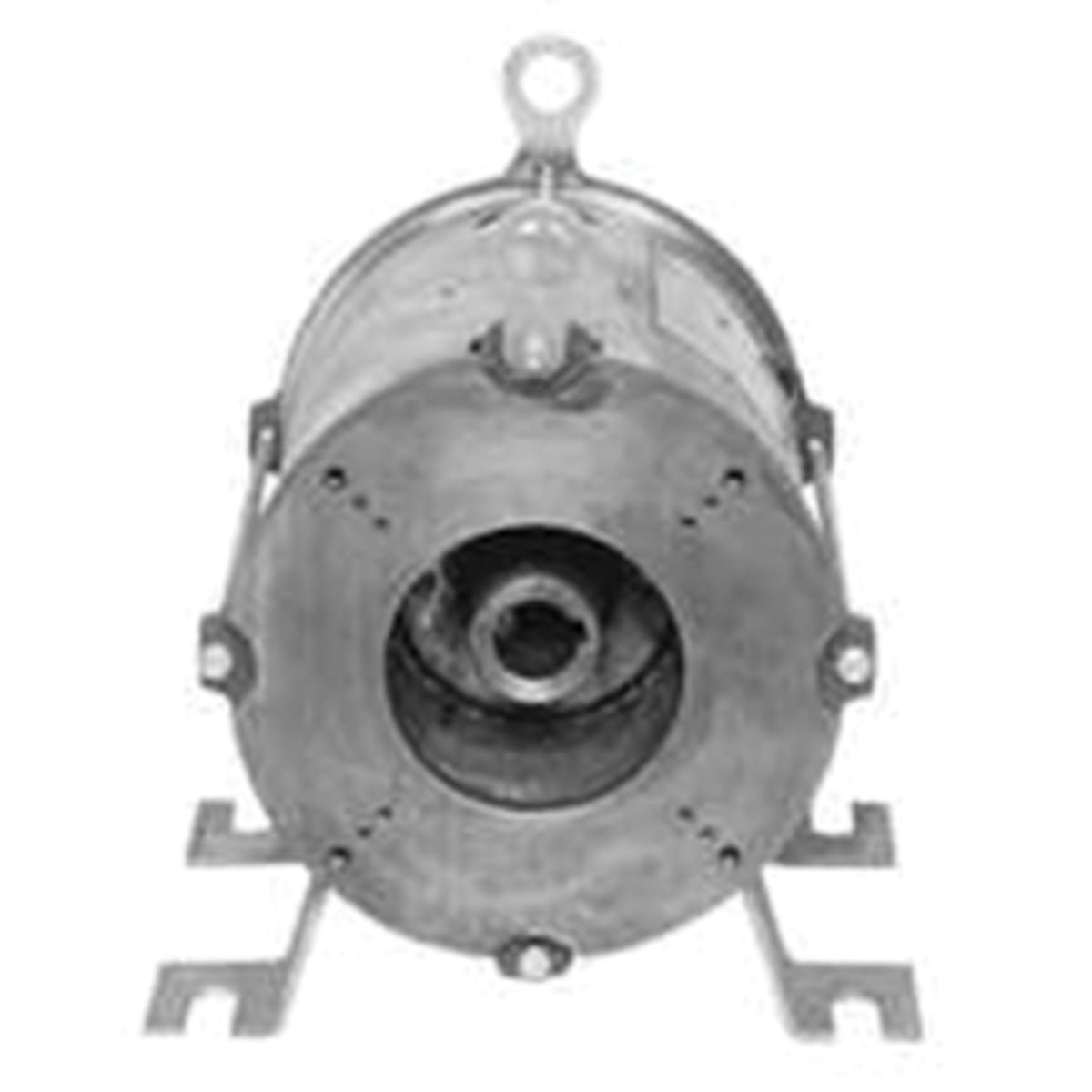

LEESON LM29662 LEE Intermittent Duty AC Motor 25 hp 200 VAC

Product Description

LEESON AC Motor with MPN LM29662 is an intermittent duty motor suitable for various applications. This motor operates efficiently at 25 horsepower with a voltage rating of 200 VAC and a speed of 3490 rpm. It features a rigid base mount for stability and is designed to withstand high temperatures up to 70 degrees Celsius.

• Intermittent duty type motor
• Reversible operation with rigid base mount
• Open enclosure for optimal performance

Product Highlights

This motor is ideal for applications such as elevator motors, hydraulic pump motors, and submersible pump motors.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer: Leeson Electric

Technical Specifications

• Frame Size: 160Z
• Phase: 3 ph
• Speed: 3490 rpm
• Material: Rolled Steel
• Rotation: Reversible
• Dimensions: 14.53 in L x 11.81 in W x 13.35 in H
• Horsepower: 25 hp
• Shaft Size: 1.25 in Dia x 2.92 in L
• Bearing Type: Ball
• Mounting Type: Rigid Base
• Torque Rating: 37.5 ft-lb
• Enclosure Type: Open
• Service Factor: 1
• Voltage Rating: 200 VAC
• Amperage Rating: 77 A
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Country of Origin: CN
• Temperature Rating: 70 deg C
• Variable Torque Speed Range: 10:1
