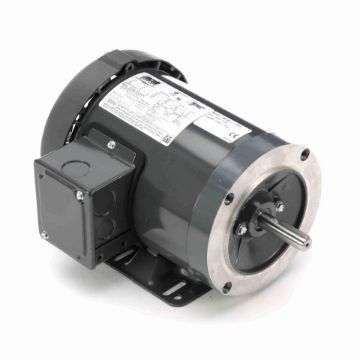

LEESON LM10339 C-Face AC Motor 3/4 hp 230/460 VAC

Product Description

The LEESON LM10339 is a C-Face AC motor designed for various industrial applications. Built with an encoder mounting provision, this motor operates at three quarter horsepower and supports voltage ratings of two hundred thirty to four hundred sixty VAC. Its entirely enclosed fan cooled enclosure ensures durability and reliable performance.

• Powerful 3/4 horsepower motor
• Totally enclosed fan cooled design
• Reversible rotation for versatile applications

Product Highlights

This motor is ideal for both constant torque applications like conveyors and variable torque setups such as pumps and fans. It has a high speed range of eighteen hundred RPM and meets stringent safety standards with CE and CSA certifications.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer: Leeson Electric

Technical Specifications

• Frame: 56HC
• Speed: 1800 rpm
• Horsepower: 3/4 hp
• Voltage Rating: 230/460 VAC
• Amperage Rating: 3/1.5 A
• Frequency Rating: 50/60 Hz
• Torque Rating: 10 ft-lb
• Enclosure Type: Totally Enclosed Fan Cooled
• Service Factor: 1
• Material: Cast Iron
• Temperature Rating: 40 deg C
• Insulation Class: Class F
• Rotation: Reversible
• Country of Origin: MX
