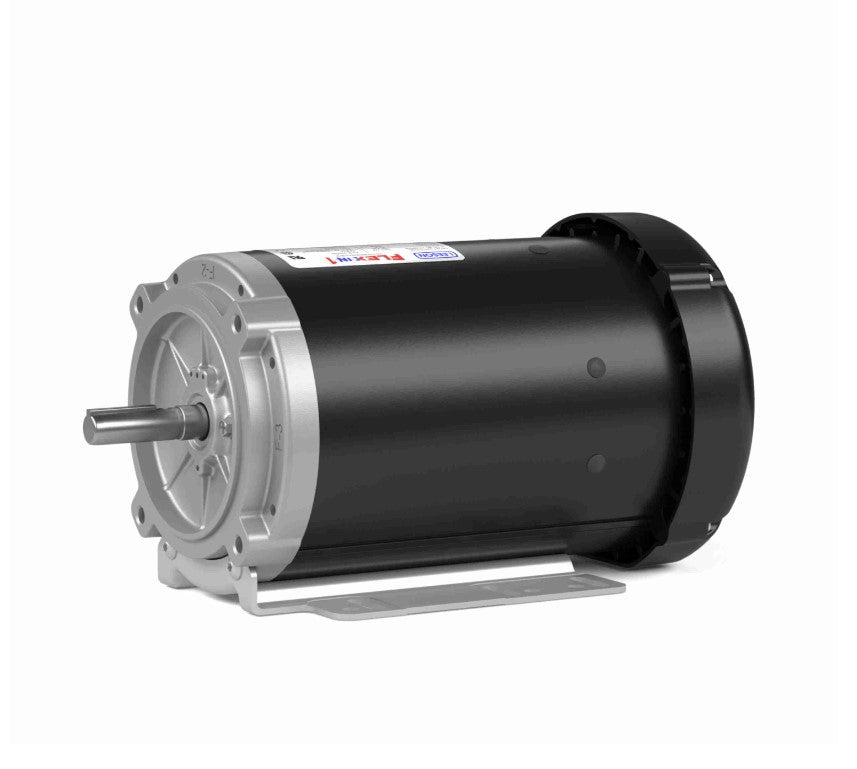

Leeson FX34BK006 Flex-In-1 General Purpose Motor 0.75 HP

Product Description

The LEESON FX34BK006 Flex-In-1™ motor replaces 18 general purpose motors and is easily configured into three mounting styles: F1, F2 & F3. This motor has provisions for multiple kits, including adding SGR (shaft grounding ring) kit, brake kit, drip cover (ODP), and lint guard (TEFC). It is inverter duty capable with combination mounting holes in base.

• One FLEX-IN-1™ motor replaces 18 general purpose motors
• Easily configured into three mounting styles: F1, F2 & F3
• Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP

Product Highlights

The FX34BK006 is suitable for various industrial applications requiring a versatile and adaptable motor solution. It operates at 230/460 & 190/380 V and 60 & 50 Hz.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: FX34BK006
• Country of Origin: Mexico

Technical Specifications

• Phase: 3
• Output HP: 0.75 & 0.75 Hp
• Output KW: 0.56 & 0.56 kW
• Voltage: 230/460 & 190/380 V
• Speed: 1140 & 950 rpm
• Service Factor: 1.15 & 1.00
• Frame: 56HC
• Enclosure: Totally Enclosed Fan Cooled
• Thermal Protection: No Protection
• Efficiency: 75.2 & 76.3 %
• Ambient Temperature: 40 °C
• Frequency: 60 & 50 Hz
• Current: 3.25/1.6 & 3.5/1.75 A
• Power Factor: 56.4
• Duty: Continuous
• Insulation Class: F
• Design Code: B
• KVA Code: M
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 43
• Number of Speeds: 1
• Electrical Type: Squirrel Cage Inverter Rated
• Starting Method: Line Or Inverter
• Poles: 6
• Rotation: Reversible
• Mounting: Bolt-on Base
• Motor Orientation: Horizontal Or Up Or Down
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: NEMA 56
• Shaft Diameter: 0.625 in
• Assembly/Box Mounting: F1 F2/F3 CAPABLE
• Inverter Load: CONSTANT 10:1
