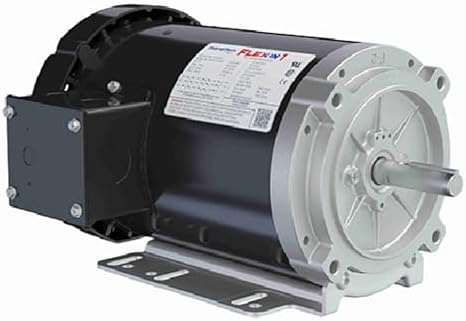

Leeson FX32BK004 General Purpose Motor 1.5 HP

Product Description

The LEESON FX32BK004 is a 1.5 HP general purpose motor designed for use on gear reducers, pumps, machine tools, and other direct coupled equipment installed in relatively clean and dry environments. This three-phase motor features a TEFC enclosure and is inverter duty capable. It is designed for reliable operation in various industrial applications.

• One FLEX-IN-1 motor replaces 18 general purpose motors
• Easily configured into three mounting styles: F1, F2 & F3
• Dual voltage capability of 208-230/460 V

Product Highlights

The Leeson FX32BK004 is ideal for environments where durability and efficiency are paramount. Suitable for food processing, industrial machinery, agriculture, and mining sectors.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: FX32BK004
• Country of Origin: Mexico

Technical Specifications

• Application: General Purpose
• Output HP: 1.50 & 1.50 Hp
• Output KW: 1.1 & 1.1 kW
• Output RPM: 1725
• Frame Size NEMA: 56HC
• Mount NEMA: C Face Bolt-on Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP43
• Voltage: 208-230/460 & 190/380 V
• Phase: 3
• Speed: 1725 & 1425 rpm
• Service Factor: 1.15 & 1.00
• Frame: 56HC
• Enclosure: Totally Enclosed Fan Cooled
• Thermal Protection: No Protection
• Efficiency: 86.5 & 85.5 %
• Ambient Temperature: 40 °C
• Frequency: 60 & 50 Hz
• Current: 4.7-4.6/2.3 & 5.4/2.7 A
• Power Factor: 71
• Duty: Continuous
• Insulation Class: F
• Design Code: A
• KVA Code: P
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 43
• Number of Speeds: 1
• Electrical Type: Squirrel Cage Inverter Rated
• Starting Method: Line Or Inverter
• Poles: 4
• Rotation: Reversible
• Resistance Main: 7.9 Ohms
• Mounting: Bolt-on Base
• Motor Orientation: Horizontal Or Up Or Down
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Shaft Diameter: 0.625 in
• Assembly/Box Mounting: F1 F2/F3 CAPABLE
• Inverter Load: CONSTANT 10:1
• Actual Rated Input Voltage: 230/460 V
• Inverter/Vector Duty Rating: Inverter Duty
• Rated Load (HP): 1 1/2
• AC Frequency Rating: 50/60 Hz
• Base RPM: 1800
• AC Motor Type: Induction/Asynchronous
• Nominal Rated Input Voltage: 208 V, 230 V, 460 V
• NEMA Frame Suffix: HC
• AC Phase: Three Phase
