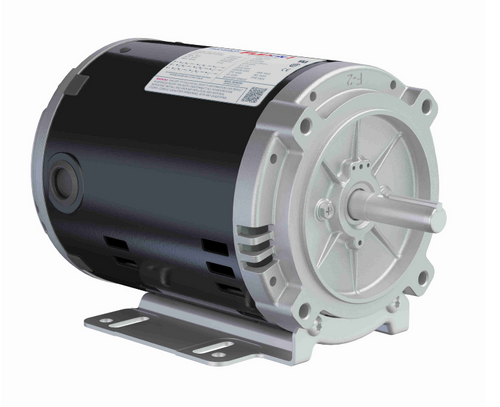

Leeson FX12BK001 General Purpose Motor 1/2 HP 56C

Product Description

The LEESON FX12BK001 is a general purpose motor with 0.5 HP, operating at 230/460 & 190/380 V and 3600 & 3000 RPM. This motor is easily configured into three mounting styles: F1, F2 & F3. It is inverter duty capable and features combination mounting holes in the base. Operational at 208-230/460 V @60HZ.

• One FLEX-IN-1™ motor replaces 18 general purpose motors
• Easily configured into three mounting styles: F1, F2 & F3
• Inverter duty capable

Product Highlights

The FLEX-IN-1™ motor offers versatile mounting options and is inverter duty capable, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: FX12BK001
• Country of Origin: Mexico

Technical Specifications

• Motor Phase: 3 ph
• Motor Horsepower: 1/2 hp
• Synchronous Rpm: 3600 rpm / 3000 rpm
• Motor Supply Voltage: 190/380 V, 230/460 V
• Frame Size: 56C
• Enclosure Type: DP (Drip Proof)
• Frequency Rating: 60 Hz
• Assembly Box Mounting: F1, F2/F3 Capable
• Duty Condition Type: Continuous
• Mounting Type: Bolt-on Base
• Thermal Protection: No Protection
• Electrical Type: Squirrel Cage Inverter Rated
• KVA Code: N
• Motor Orientation: Horizontal
• Number Of Speeds: 1
• Starting Method: Line Or Inverter
• Shaft Diameter: 0.6250 in
• Shaft Type: NEMA 56
• Drive End Bearing: Ball
• Ambient Temperature Range: 40 °C
• Opposite Drive End Bearing Type: Ball
• NEMA Design Class: B
• Service Factor: 1.25
• Frame Material: Rolled Steel
• Insulation Class: F
• IP Rating: 22
• Drive End Bearing Size: 6203
• Opposite Drive End Bearing Size: 6203
• Voltage: 230/460 V
• Product Type: General Purpose Motors
• Model No: 056T34D15644
• HP: 1/2
• RPM: 3600
• Volts: 208-230/460
• Amps: 2.0/1.0
• Hz: 50/60
• Phase: 3
• Enclosure: ODP (Open Drip Proof)
• Inverter Duty: 10:1 CT
• Power Rating: 0.5 Hp, 0.37 KW
• Poles: 2
• Motor Application: General Purpose
• Resistance: 22.64
• NEMA Design: B
• Bearing Type: Ball
• Inch/Metric: Inch
• Amps 2: 2/1 A
• Frequency: 60 & 50 Hz
• Power Factor: 57.60
• Shaft Dia.: 0.63 in
• Efficiency: 83.9 & 84.2 %
• Voltage Rating: 208-230/460 V
• Standard: CE, CSA, UL
• Rotation: Reversible
• Output HP: 0.50 & 0.50 Hp
• Output KW: 0.37 & 0.37 kW
• Speed: 3450 & 2850 rpm
• Ambient Temperature: 40 °C
• Current: 2.0/1.0 & 2/1 A
• Design Code: B
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 22
• Starting Type: Line Or Inverter
• Resistance Main: 22.64 Ohms
• Assembly/Box Mounting: F1 F2/F3 CAPABLE
• Inverter Load: CONSTANT 2:1
