Leeson FX01BK004 General Purpose Motor 1 HP 56HC FRAME

Product Description

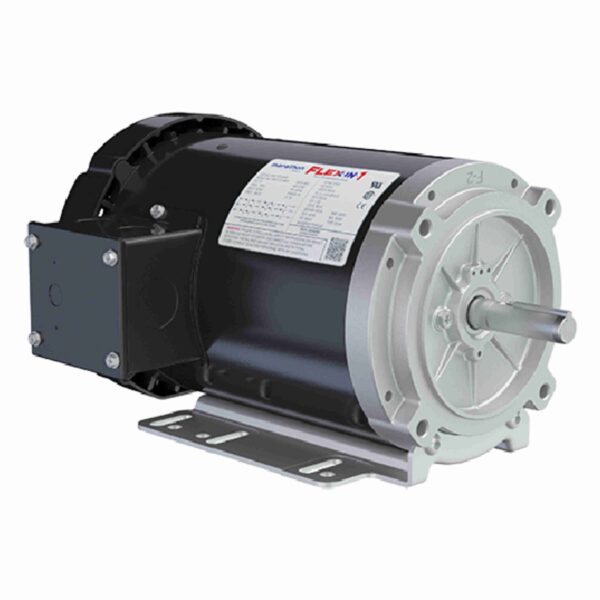

The LEESON FX01BK004 is a 1 HP three-phase general-purpose motor designed for pumps, fans, blowers, compressors, and other industrial machinery installed in damp, dusty, or dirty environments. The FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3. It is designed for general purpose use on gear reducers, machine tools, and other direct-coupled equipment.

• One FLEX-IN-1 motor replaces 18 general purpose motors
• Patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
• Suitable for pumps, fans, blowers, compressors, and other industrial machinery

Product Highlights

The Leeson FX01BK004 is a 1 HP motor with a 56HC frame, TEFC enclosure, and inverter-duty capability, offering flexibility and durability for industrial applications.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: FX01BK004
• Country of Origin: Mexico

Technical Specifications

• MPN: FX01BK004
• Brand: LEESON
• Application: General Purpose
• Output HP: 1
• Output KW: 0.75
• Output RPM: 1725//1425
• Frame Size NEMA: 56HC
• Mount NEMA: C Face Bolt-on Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP43
• Voltage: 208-230/460//190/380
• Phase: 3
• Speed: 1725 & 1425 rpm
• Service Factor: 1.15 & 1.00
• Frame: 56HC
• Enclosure: Totally Enclosed Fan Cooled
• Thermal Protection: No Protection
• Efficiency: 85.9 & 84 %
• Ambient Temperature: 40 °C
• Frequency: 60 & 50 Hz
• Current: 3.10-3.13/1.55 & 3.6/1.8 A
• Power Factor: 71.8
• Duty: Continuous
• Insulation Class: F
• Design Code: B
• KVA Code: P
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 43
• Number of Speeds: 1
• Electrical Type: Squirrel Cage Inverter Rated
• Starting Method: Line Or Inverter
• Poles: 4
• Rotation: Reversible
• Resistance Main: 11.8 Ohms
• Mounting: Bolt-on Base
• Motor Orientation: Horizontal Or Up Or Down
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: NEMA 56
• Shaft Diameter: 0.625 in
• Assembly/Box Mounting: F1 F2/F3 CAPABLE
• Inverter Load: CONSTANT 10:1
• Horse Power: 1
• RPM: 1800
• Amperage (Full Load): 3.10/3.13
• Mounting Type: Removable
• Enclosure Type: TEFC
• shaft: 5/8"
