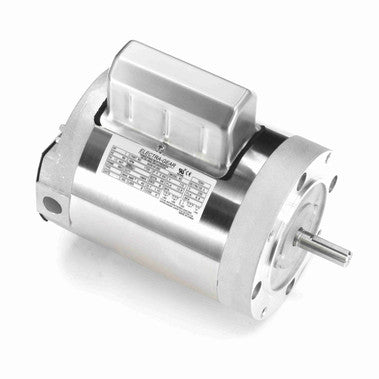

Leeson 6439191262 AC Motor 1 hp (Each)

Product Description

The Leeson 6439191262 is an AC motor designed specifically for boat hoist applications. This motor operates at one horsepower and spins at a speed of 1725 revolutions per minute. It is compatible with both 115 and 230 voltage ratings and is classified as a single-phase motor. The round mount design allows for easy installation in various settings.

• 1 horsepower performance
• 1725 RPM for efficient operation
• Round mounting for versatile installation

Product Highlights

This AC motor is built for boat hoist applications, ensuring reliability and efficiency.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 112518214

Technical Specifications

• Voltage Rating: 115/230
• Mounting: Round
• Motor Application: Boat Hoist Duty
• Frame Material: Stainless Steel
• Phase: Single Phase
• Hz: 60
• Drive End Bearing: 6203
• Frame: 56C
• Efficiency Group: 69%
• Enclosure: TENV
• Open End Bearing: 6203
• Enclosure Designation: Totally Enclosed Non Ventilated
• Full Load Amps: 13.6/6.8
• RPM: 1725
• Poles: 4
• Rotation: Selective CCW
• Insulation: B
• Weight: 32.0 lb
• EAN or UPC: 691720000038
