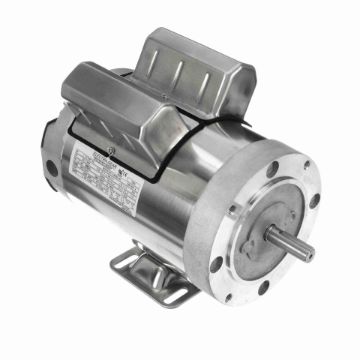

LEESON 6439191253 LEE 1.5 hp AC Motor 56C Frame

Product Description

LEESON 6439191253 is a four-pole AC motor designed for various industrial applications. This motor operates at one point five horsepower, providing reliable performance in Hoist Motors and other sectors. The motor features a totally enclosed nonvented enclosure, ensuring durability and protection against contaminants.

• Capacitor start design for easy operation.
• Rated for 115/230 VAC and 60 Hz frequency.
• Selective counterclockwise rotation to meet specific installation needs.

Product Highlights

This motor is equipped with a stainless steel frame, ball bearings, and a service factor of 1.15. Ideal for trade professionals in HVAC, plumbing, and other industrial fields.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer: Leeson Electric

Technical Specifications

• MPN: 6439191253
• Frame Size: 56C
• Horsepower: 1.5 hp
• Voltage Rating: 115/230 VAC
• Amperage Rating: 15.2/7.6 A
• Speed: 1725 rpm
• Shaft Size: 0.63 in Dia x 1.88 in L
• Torque Rating: 71.8 ft-lb
• Dimensions: 6.5 in Dia x 12.6 in L x 8.6 in H
• Enclosure Type: Totally Enclosed Nonvented (TENV)
• Service Factor: 1.15
• Insulation Class: Class B
• Operating Temperature: 40 deg C
