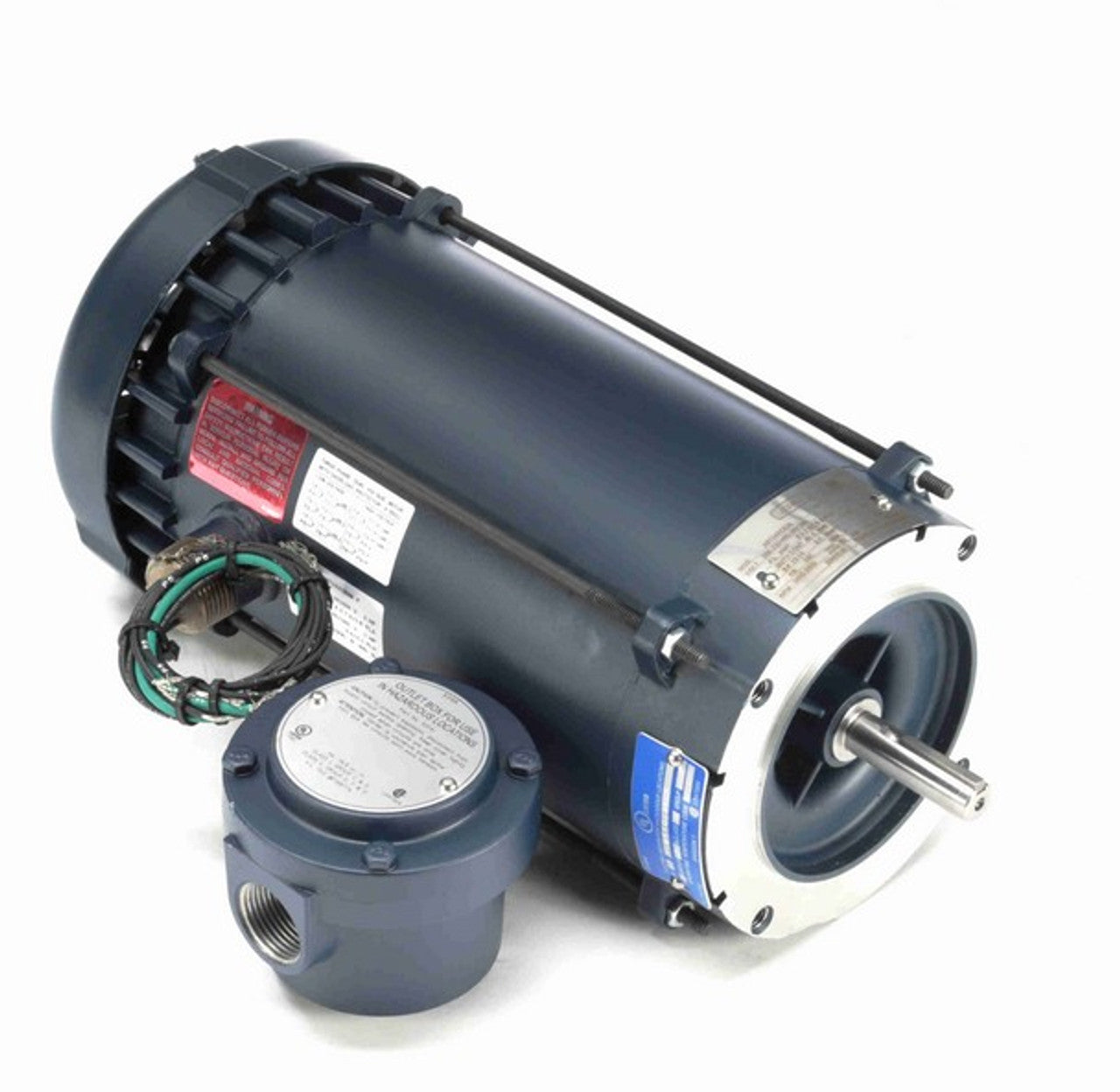

Leeson 119435.00 AC Motor 3 hp 3450 rpm Three Phase 208-230/460

Product Description

The Leeson 119435.00 is a robust AC motor designed for demanding applications. This three-phase motor delivers a power output of three horsepower with a speed of three thousand four hundred fifty revolutions per minute. It is suitable for explosion proof applications and is built to operate under various voltage ratings.

• Explosion Proof Motor Application
• Round Mount Design
• High Efficiency at 87.5%

Product Highlights

This motor is ideal for industrial setups where safety and efficiency are critical. Its EPFC enclosure ensures reliable performance in harsh conditions.

Product Information

Standard Information

• Brand: Leeson
• MPN: 119435.00

Technical Specifications

• HP: 3
• RPM: 3450
• Frame: 56C
• Phase: Three Phase
• Poles: 2
• Weight: 59.0 LB
• Voltage Rating: 208-230/460
• Insulation: B
• Mounting: Round
• Enclosure: EPFC
• Full Load Amps: 8.2-7.6/3.8
• Efficiency Group: 87.5%
• Rotation: Reversible
• Frame Material: Rolled Steel
• Drive End Bearing: 6205
• Open End Bearing: 6203
• Enclosure Designation: Explosion Proof Fan Cooled
• EAN or UPC: 691720047019
