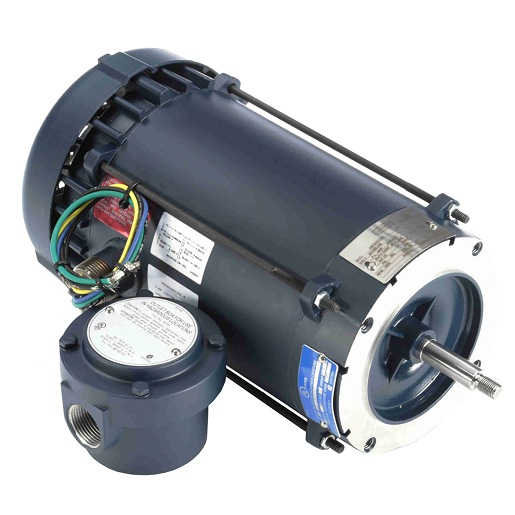

Leeson 116186.00 Explosion Proof AC Motor 3/4 HP (56J)

Product Description

The Leeson 116186.00 is an explosion-proof AC motor rated at 3/4 HP, designed for single-phase 60 Hz systems. It operates at dual voltage 115/230 V with a synchronous speed of 3600 RPM and features an EPFC enclosure and NEMA 56J frame. The motor uses C-face mounting with no base, a 5/8 inch (15.875 mm) shaft, and a 14.45 inch overall length; full-load efficiency is 66%.

• Power and speed: 3/4 HP, synchronous speed 3600 RPM, 2 poles.
• Electrical: 115/230 V input, single phase, 60 Hz, current rating ~10.6 A (115 V) / ~5.3 A (230 V).
• Mechanical: EPFC explosion-proof enclosure, NEMA 56J frame, C-face mounting, 0.625 in (15.875 mm) shaft, 14.45 in overall length, 43 lb (19.5 kg) weight.

Product Highlights

EPFC explosion-proof enclosure; C-face mounting; 5/8 in shaft; 66% full-load efficiency.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 116186.00

Technical Specifications

• Brand: Leeson
• Manufacturer: Regal Rexnord
• Manufacturer Part Number: 116186.00
• Category: Explosion Proof General Purpose AC Motors
• Horsepower: 3/4 HP
• Input Voltage: 115/230 V
• Phase: Single phase
• Frequency: 60 Hz
• Synchronous Speed: 3600 RPM
• Poles: 2
• Enclosure: EPFC (explosion-proof)
• Frame Size: 56J
• Frame Profile: NEMA
• Mounting Type: C-Face
• Base: No
• Shaft Diameter: 0.625 in (15.875 mm)
• Overall Length: 14.45 in
• Efficiency (Full Load): 66%
• Current Rating: 10.6 A / 5.3 A (115 V / 230 V)
• Weight: 43 lb (19.5 kg)
• EAN/GTIN: 0691720255995
• Harmonized Tariff Code: 8501.40.60.40
• Product Type: Motor
