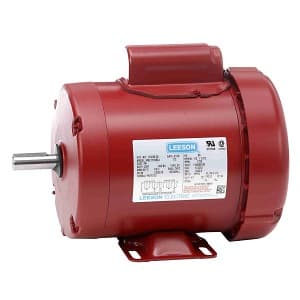

Leeson 113256.00 AC Motor 0.33 hp 1725 rpm 56 Frame 115/208-230

Product Description

Leeson 113256.00 is an AC Motor designed for agricultural applications. This motor provides reliable performance at 0.33 horsepower and operates at 1725 revolutions per minute (rpm).

• Single phase design
• TEFC enclosure for protection
• Rigid base mounting configuration

Product Highlights

This motor is suitable for use in various agricultural settings where a dependable power source is essential.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 113256.00

Technical Specifications

• Horsepower: 1/3 hp
• Voltage Rating: 115/208-230
• Frequency: 60 Hz
• RPM: 1725
• Phase: Single Phase
• Poles: 4
• Weight: 23.0 LB
• Enclosure Type: TEFC
• Frame Size: 56
• Insulation Category: B
• Service Factor: 1.15
• Mounting Type: Rigid Base
• Drive End Bearing: 6203
• Open End Bearing: 6203
• Efficiency Group: 62 %
• Full Load Amps: 6.4/3.4-3.2
• Frame Material: Rolled Steel
• Rotation: Selective CCW
• Enclosure Designation: Totally Enclosed Fan Cooled
• EAN or UPC: 691720011874
