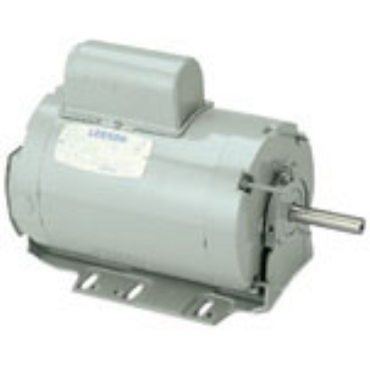

Leeson 111321.00 AC Single Phase Agricultural Duty Motors 1/2 hp 60 Hz

Product Description

Leeson 111321.00 is an AC single phase agricultural duty motor designed for various agricultural applications. This motor provides reliable performance with a power output of one-half horsepower at 1,075 revolutions per minute. Its resilient base mounting ensures stability during operation.

• 1/2 horsepower
• Speed of 1,075 rpm
• TENV enclosure

Product Highlights

This motor is suitable for driving poultry feed auger systems and comes with a choice of starting switches.

Product Information

Standard Information

• Brand: Leeson
• Model Number: 111321

Technical Specifications

• Horsepower: 1/2
• Frequency: 60 Hz
• RPM: 1,075
• Frame Size: 56
• Phase: Single Phase
• Poles: 6
• Weight: 37.0 LB
• Voltage Rating: 115/230 V
• Mounting: Resilient Base
• Insulation Class: B4
• Enclosure Designation: Totally Enclosed Non Ventilated
• Service Factor: 1
• Efficiency Group: 62
• Rotation: Selective CCW
