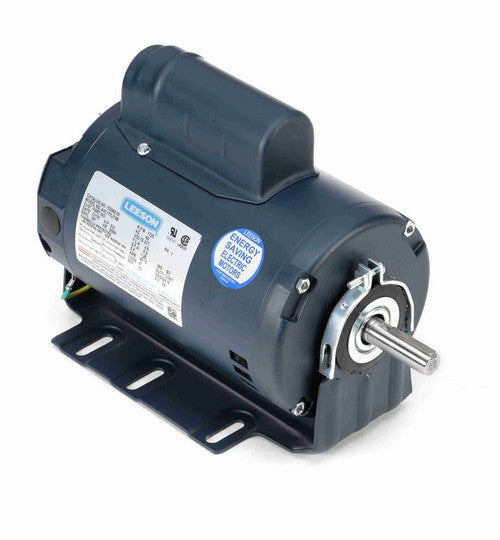

Leeson 102966 3/4HP 1725RPM S56H ODP 277VAC 1PH Motor

Product Description

The LEESON 102966 is a 3/4HP single-phase resilient base 277VAC HVAC motor suited for belt-driven fans or fan-on-shaft applications. The motor features a durable rolled steel frame and a 5/8" keyed output shaft. It has automatic overload protection and moderate starting torque to reduce machinery stresses. UL Recognized and CSA Certified.

• Durable rolled steel frame
• Industrial quality resilient base
• Automatic overload protection
• 5/8" Keyed output shaft
• Capacitor start

Product Highlights

This LEESON motor is designed for HVAC applications, offering reliable performance with its robust construction and safety features.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 102966
• Country of Origin: MX

Technical Specifications

• Application: HVAC
• Output HP: 3/4
• Output KW: 0.56
• Output RPM: 1725
• Frame NEMA: S56H
• Mount NEMA: Resilient Base
• Enclosure NEMA: ODP
• Enclosure IEC: IP22
• Voltage: 277 V
• Frequency (Hz): 60
• Mount Type: Resilient Base
• Frequency: 60 Hz
• Horsepower: 3/4 hp
• Enclosure Type: DP
• Frame: S56H
• kW: 0.56 kW
• Phase: 1
• Speed: 1725 rpm
• Service Factor: 1.25
• Thermal Protection: Automatic
• Efficiency: 70 %
• Ambient Temperature: 40 °C
• Current: 4.5 A
• Power Factor: 64
• Duty: Continuous
• Insulation Class: B
• Design Code: N
• KVA Code: K
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: N
• IP Code: 22
• Number of Speeds: 1
• Electrical Type: Capacitor Start Induction Run
• Starting Method: Across The Line
• Poles: 4
• Rotation: Selective Counterclockwise
• Resistance Main: 0 Ohms
• Mounting: Resilient Base
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: NEMA 56
• Overall Length: 11.81 in
• Frame Length: 7.00 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 1.88 in
• Assembly/Box Mounting: F1 ONLY
• Packaged Length: 13.75 IN
• Packaged Width: 7.88 IN
• Packaged Height: 8.75 IN
• Motor Type: Fan Motor
• Amps: 4.5
• Hertz: 60 Hz
• Starting Type: Capacitor Start
• Shaft Length: 1 7/8"
• Overload Protection: Auto
• Bearings: Ball Bearings
• Enclosure: ODP (Open Drip Proof)
• Part No.: 102966.00
• Category: Motor
