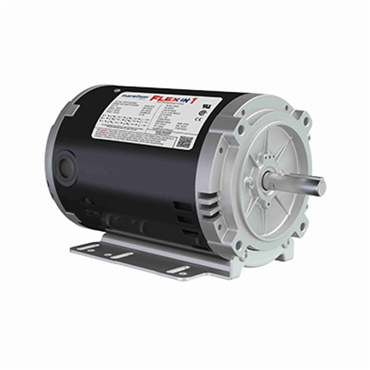

Leeson 056T34D15650 Flex-In-1 Three Phase General Purpose AC Motor

Product Description

The LEESON 056T34D15650 Flex-In-1 motor replaces 18 general purpose motors. This motor is easily configured into three mounting styles: F1, F2 & F3. It features provisions for multiple kits, including SGR, brake, drip cover (ODP), and lint guard (TEFC). Inverter duty capable with combination mounting holes in base.

• Replaces 18 general purpose motors
• Configurable into three mounting styles: F1, F2 & F3
• Inverter duty capable

Product Highlights

The LEESON 056T34D15650 is a versatile three-phase motor suitable for various general-purpose applications. It offers multiple mounting configurations and inverter duty capabilities.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 056T34D15650
• Country of Origin: Mexico

Technical Specifications

• Shaft Type: NEMA 56
• Drive End Bearing: 6203
• Speed 2: 3450
• Power Rating: 2 Hp, 1.5 KW
• Power Factor: 80
• Voltage Rating: 208-230/460 V
• Motor Application: General Purpose
• Enclosure: DP
• No. of Speeds: 1
• Starting Type: Line Or Inverter
• Frame: 56HC
• Motor Orientation: Horizontal
• Amps 2: 5.5-5.4/2.7 A
• Thermal Protection: No Protection
• Amps: 5.5-5.4/2.7 A
• Ambient Temperature Range [Max]: 104 °F
• NEMA Design: B
• Phase: Three Phase
• Poles: 2
• Bearing Type: Ball
• Shaft Dia.: 0.63 in
• Rotation: Reversible
• RPM [Max]: 3450 RPM
• Insulation Class: F
• Frequency: 60 Hz
• Frame Material: Rolled Steel
• Duty: Continuous
• Efficiency: 85.5 %
• Electrical Type: Squirrel Cage Inverter Rated
• Mounting: Bolt-on Base
• Standard: CE, CSA, UL
• Service Factor: 1.15
• Inch/Metric: Inch
• MPN: 056T34D15650
• Brand: LEESON
• Ambient temperature (°C): 40
• Assembly/box mounting: F1 F2/F3 CAPABLE
• CE: Y
• CSA: Y
• Current: AC
• Design code: B
• Drive end bearing size: 6203
• IP code: 22
• KVA code: K
• Opp drive end bearing: Ball
• Opp drive end bearing size: 6203
• Output HP: 2 & 2 Hp
• Output KW: 1.5 & 1.5 kW
• Resistance main: 0 ohms
• Service factor: 1.15 & 1.00
• Shaft diameter: 0.625 in
• Speed: 3450 & 2850 rpm
• Starting method: Line Or Inverter
• UL: Recognized
• Voltage: 208-230/460
• Manufacturer Name: REGAL REXNORD
• Horse Power: 2HP
• Frame Size: 56HC
• Hertz: 50/60
• Sync RPM: 3600
• Frame Profile: NEMA
• Mounting Method: C-Face | Foot Mounted
• Base: Yes
• Efficiency Full Load: 85.5
• Inch - Metric: Inch
• Other Features: FLEX-IN-1 Series
• Category - BDI: Three Phase AC Motors
• Product Group - BDI: M04104
• Harmonized Tariff Code: 8501.40.60.40
• Noun: Motor
• Keyword String: Alternating Current General Purpose
• Manufacturer URL: https://www.regalrexnord.com
• Manufacturer Item Number: 056T34D15650
• Shaft Diameter: 0.625 Inch | 15.875 Millimeter
• Overall Length: 12.28 Inch | 311.912 Millimeter
• Base to Center of Shaft: 3.5 Inch | 88.9 Millimeter
• Part No.: 056T34D15650
• Category: Motor
