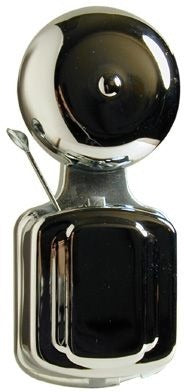

Lee Electric bc305 Chime Buzzer Concealed Terminals

Product Description

The LEE ELECTRIC bc305 is a 2-coil chime buzzer designed for low-voltage doorbell and signaling applications. It features a 3-inch diameter gong and concealed terminals for a clean, finished appearance after installation. The bc305 suits residential entry signaling systems and is typically installed by electricians or skilled trades performing low-voltage wiring work. Its dual-coil design produces a two-tone chime sound, distinguishing front-door and back-door signals in standard doorbell configurations.

The bc305 is suited for residential signaling applications where a surface-mounted or flush-installed chime unit is required. The concealed terminal design keeps wiring hidden once the unit is mounted, making it appropriate for finished interior walls in homes and light commercial entry points. Installers working on doorbell system upgrades or new construction rough-in will find the compact 3-inch gong footprint compatible with standard chime mounting locations.

Key Features

• 2-coil bell mechanism produces a two-tone chime for front and rear door signaling
• 3-inch diameter gong for clear, audible tone
• Concealed terminals keep wiring hidden for a clean finished look
• Compact form factor suited to standard residential chime mounting locations

Compatibility

Designed as an OEM-style replacement or direct-install chime buzzer for standard residential low-voltage doorbell signaling systems.

Installation Notes

Installation is typically performed by a licensed electrician or low-voltage technician. De-energize the doorbell transformer at the breaker before making any terminal connections. Follow NEC guidelines for low-voltage wiring where applicable. Do not exceed the rated voltage of the transformer feeding this unit.

Technical Specifications

• Coil Configuration: 2-coil bell
• Gong Diameter: 3 inches
• Terminal Type: Concealed

Standard Information

• Brand: LEE ELECTRIC
• Manufacturer Part Number: bc305
