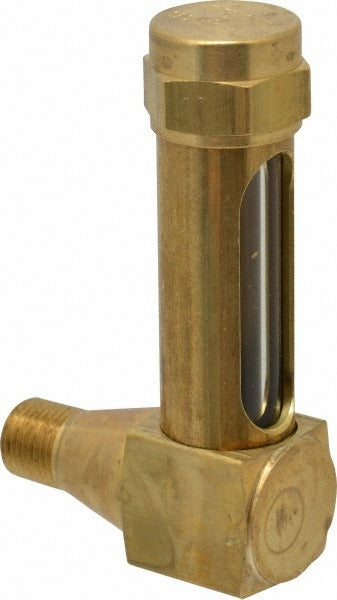

Ldi Industries G102-1 Vented Oil Level Indicator Gauge

Product Description

The LDI INDUSTRIES G102-1 is a vented oil-level indicator and gauge designed to provide a clear visual check of oil levels in industrial and mechanical equipment. Built with a short elbow configuration, it features a 1-3/8 inch sight length and a 1/8 inch thread size for straightforward installation into standard ported housings. The Buna-N seal material offers reliable resistance to petroleum-based oils, making it a dependable choice for gearboxes, compressors, and similar oil-lubricated equipment. The center-of-base measurement is 2-3/8 inches. This type of sight gauge is typically installed by millwrights, industrial mechanics, or HVAC-refrigeration technicians during scheduled maintenance or equipment commissioning.

This gauge is suited for use on equipment housings that require a compact, low-profile oil-level indicator. The short elbow design positions the sight glass at an angle, making it easier to view oil levels in installations where a straight sight glass would be obscured or difficult to read. It is a common replacement component on gearboxes, pump housings, and oil-lubricated bearing assemblies in both light industrial and commercial mechanical systems.

Key Features

• Short elbow gauge style for angled viewing in tight installations
• 1-3/8 inch sight length for a compact, low-profile footprint
• 1/8 inch thread size for standard port fitment
• Buna-N seal material provides good resistance to petroleum-based oils
• Vented design allows accurate oil-level reading without pressure buildup
• 2-3/8 inch length to center of base for precise positioning reference

Compatibility

Designed as an OEM-style replacement oil-level sight gauge for gearboxes, pump housings, and oil-lubricated mechanical equipment that accept a 1/8 inch threaded port.

Installation Notes

Installation should be performed by a qualified mechanic or technician. Shut down the equipment and relieve any system pressure before removing or installing the sight gauge. Use the appropriate thread sealant approved for oil service applications, and do not overtighten the fitting into the housing to avoid thread damage. Verify the seal is properly seated and check for leaks after returning the equipment to service.
