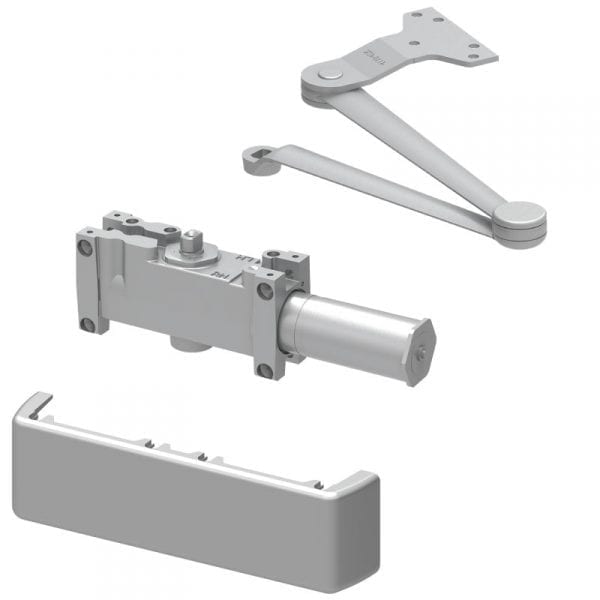

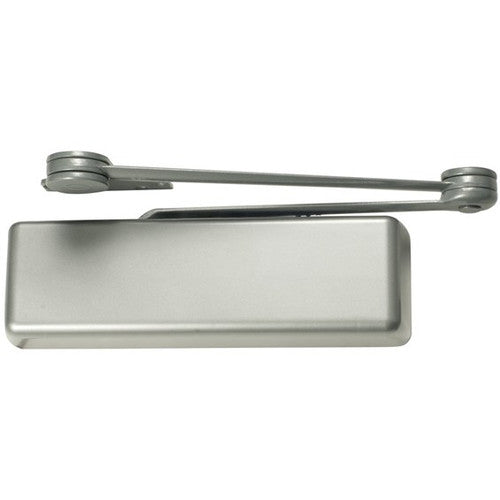

LCN CLOSERS 4111-EDA-AL-RH Door Closer Parallel Arm Push Side Mount with EDA

Product Description

The LCN CLOSERS 4111-EDA-AL-RH is a Grade 1 door closer designed for parallel arm push side mounting. This heavy-duty closer is suitable for high-traffic areas and unique mounting requirements.

• Designed for institutional and rugged high-traffic applications.
• Adjustable Spring Size 1-5, includes patented Green Dial.
• Suitable for interior doors up to four feet six inches wide and exterior doors up to three feet six inches wide.

Product Highlights

This door closer is built for heavy-duty use and is UL and cUL listed.

Product Information

Standard Information

• Brand: LCN
• Usage: Heavy Duty

Technical Specifications

• Body Construction: Cast Iron Body
• Spring Size: Adjustable Spring Size 1-5
• Fluid: All Weather Liquid X Fluid
• Door Application: Hollow Metal or Wood
• Handing: Handed – RH
• Certifications: ANSI Standard A156.4 – Grade-1
• Fire Rating: UL and cUL Listed – up to 3 Hours
• ADA Compliance: Meets ADA requirements – A117.1 Accessibility Code
• Warranty: 30 Years
• Buy American Act Compliance: Made in USA
• Series: 4110 Series
• Finish: Aluminum
• Length: 13.9 inches
• Width: 10.7 inches
• Height: 4.1 inches
