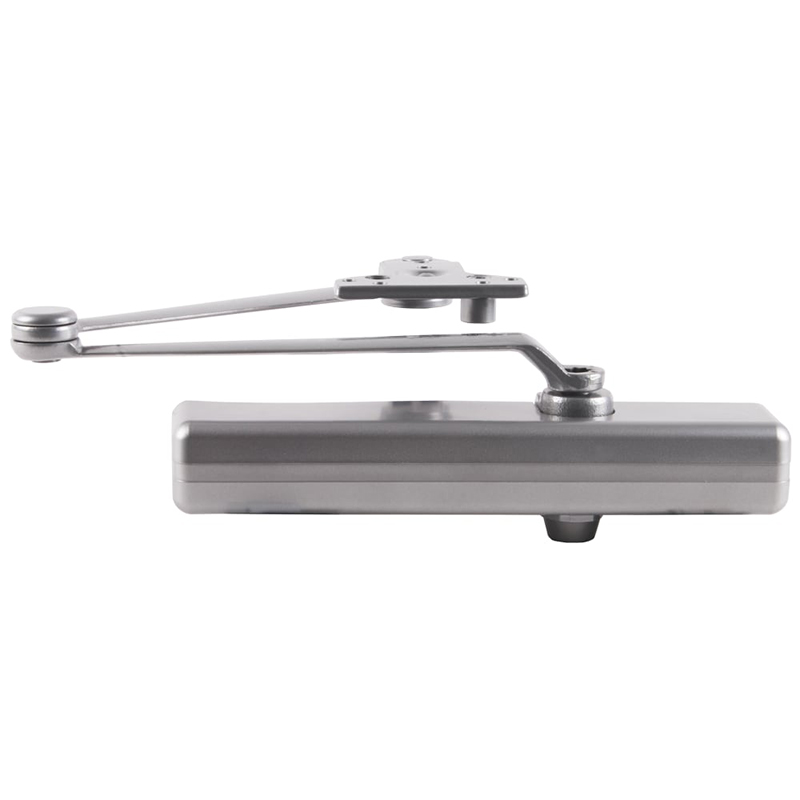

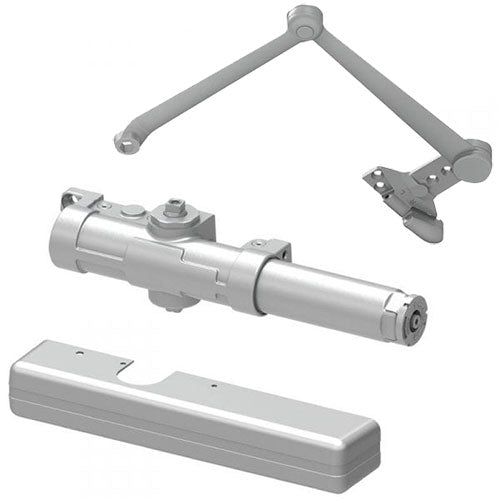

LCN CLOSERS 1461-SCUSH-AL Surface Door Closer Cush Arm

Product Description

The LCN CLOSERS 1461-SCUSH-AL surface door closer is a Grade 1 heavy-duty solution suitable for push side, parallel arm installations. This model features a slim plastic cover and a cushioned arm designed for smooth operation. The closer allows a swing of up to one hundred degrees and is equipped with a dead-stop function to enhance durability.

• Grade 1 heavy-duty construction
• Adjustable spring size 1-6, suitable for doors up to sixty inches internally and forty-eight inches externally
• Designed for commercial applications

Product Highlights

This door closer is ideal for a variety of environments, providing reliable performance in both commercial and residential settings. It is built to last with a robust design that conforms to industry standards.

Product Information

Standard Information

• Manufacturer: LCN
• Unit of Measure: Each

Technical Specifications

• Grade: Grade 1
• Installation: Commercial
• Limited Warranty: 30 Years
• Handing: Non-Handed
• Type: Surface
• Mounting Group: Hydraulic
• Stop: Dead Stop
• Degree Swing: 100 Degrees
• Cover: Slim Plastic
• Finishes: Aluminum, Light Bronze, Black, Dark Bronze, Brass (Powder Coated)
• Usage: Medium Duty
• Spring Size: Adjustable Spring Size 1-6
• Fluid: All Weather Fluid
• Door Application: Hollow Metal, Wood, or Aluminum
• Certifications: ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray
• Fire Rating: UL and cUL Listed – up to 3 Hours (Non-Rated with Hold Open Arms)
