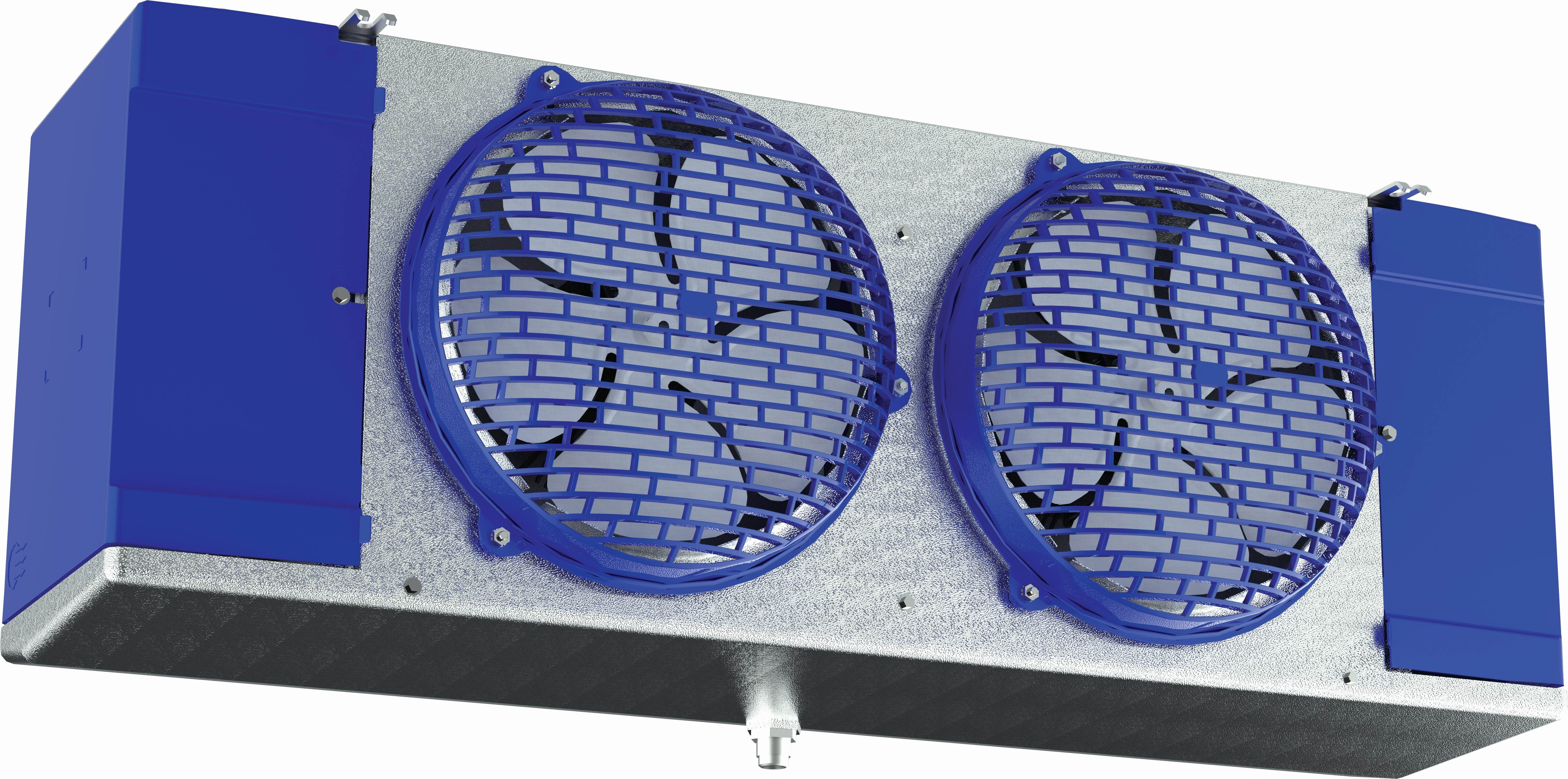

Larkin LEL0380AS6AMAB0200 Low Profile Air Def Evaporator 115V

Product Description

The Larkin LEL0380AS6AMAB0200 is a low profile evaporator/unit cooler designed for wall installation. It operates at 115 Volt AC and has a cooling capacity of 38000 BTU/Hour. The unit features a 2-Speed EC motor and is suitable for use with R-404A/R-448A/R-449A/R-407A/R-407F/R-407C refrigerants. Includes intelliGen Refrigeration Controller (R-404A/R-448A/R-449A).

• Features hinged, removable front access panels for easy maintenance.
• Equipped with a quick-removal fan guard/motor assembly.
• Includes a factory-installed liquid line solenoid wire harness.

Product Highlights

This low profile evaporator is ideal for refrigeration applications requiring efficient cooling and easy servicing.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0380AS6AMAB0200

Technical Specifications

• Motor Type: 2-Speed EC
• Refrigerant Type: R-404A/R-448A/R-449A/R-407A/R-407F/R-407C
• Number of Fans: 6
• Flow Rate: 3660 CFM
• Number of Circuits: 8
• Coil Inlet Outer Diameter: 0.5 Inch
• Suction Outer Diameter: 1.125 Inch
• Equalizer Outer Diameter: 0.25 Inch
• Drain: 0.75 Inch Male Threaded
• Fins per Inch: 6
• Includes: intelliGen Refrigeration Controller (R-404A/R-448A/R-449A)
• Approval: UL (Canada and US), NSF
• Cooling Capacity: 38000 BTU/Hour
• Current Rating: 5.4 Amp (Motor), 5.6 Amp (Minimum Circuit Ampacity), 20 Amp (Maximum Over Current Protection)
• Enclosure Material: Stainless Steel
• Frequency Rating: 60 Hertz
• Installation: Wall
• Number Of Phases: 1
• Power Rating: 330 Watt (Motor)
• Type: Low Profile
• Voltage Rating: 115 Volt AC
• Brand Name: Larkin
• Application: Indoor
• Electrical: 115-1-60
