Larkin LEL0190AS6AMAB0200 Evaporator Low Profile 19000 BTU

Product Description

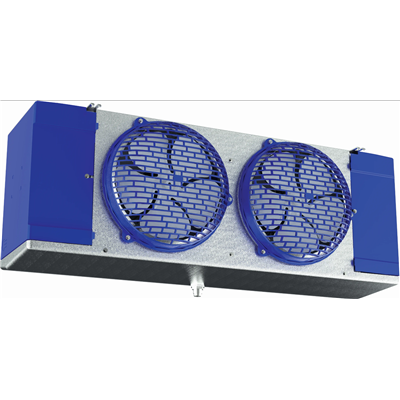

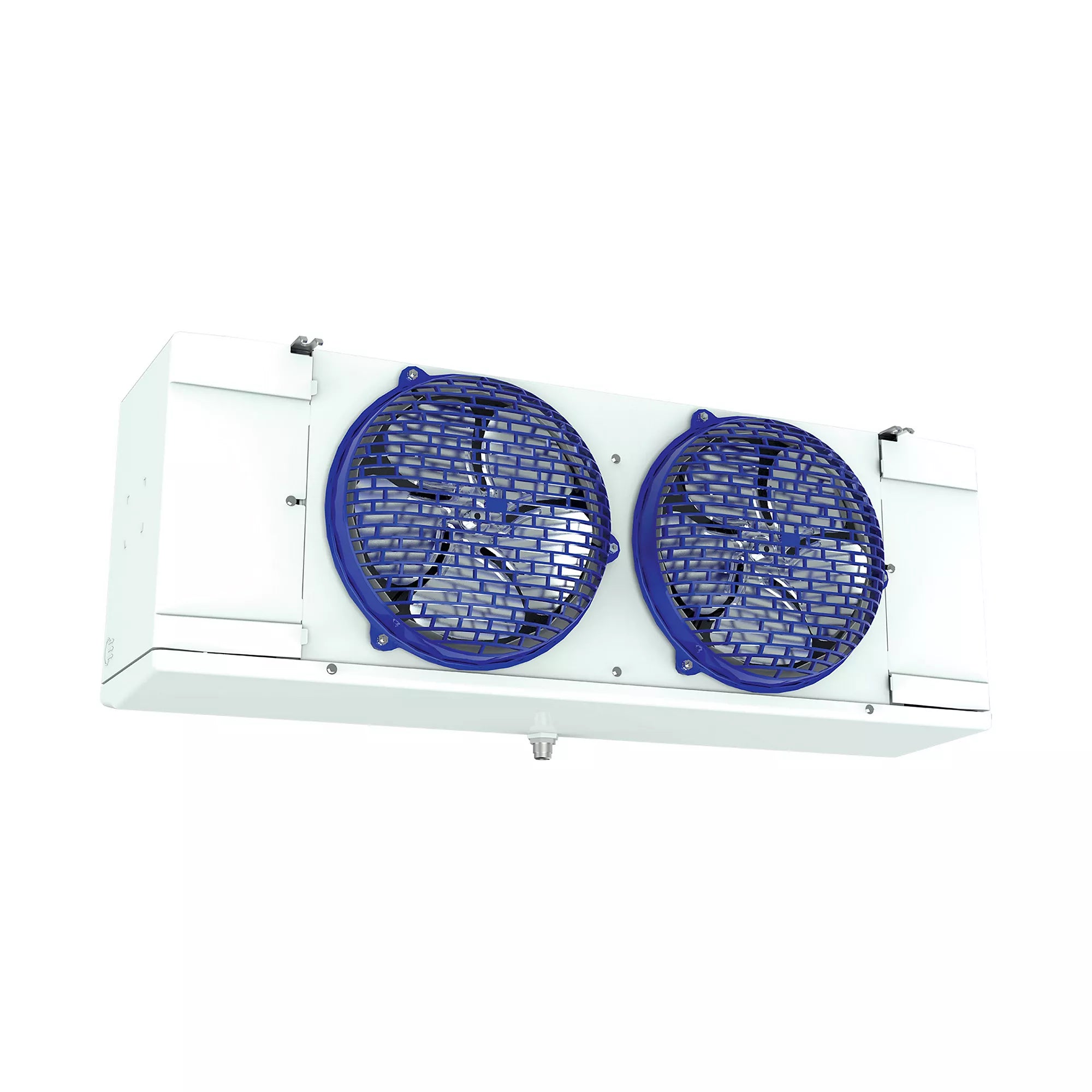

The Larkin LEL0190AS6AMAB0200 is a low profile evaporator with a cooling capacity of 19000 BTU/Hour. This unit cooler features a cabinet design with hinged, removable front access panels and a molded fan guard made of durable plastic. It operates at 115 VAC, 60 Hz, single phase, with a motor current of 2.7 Amp.

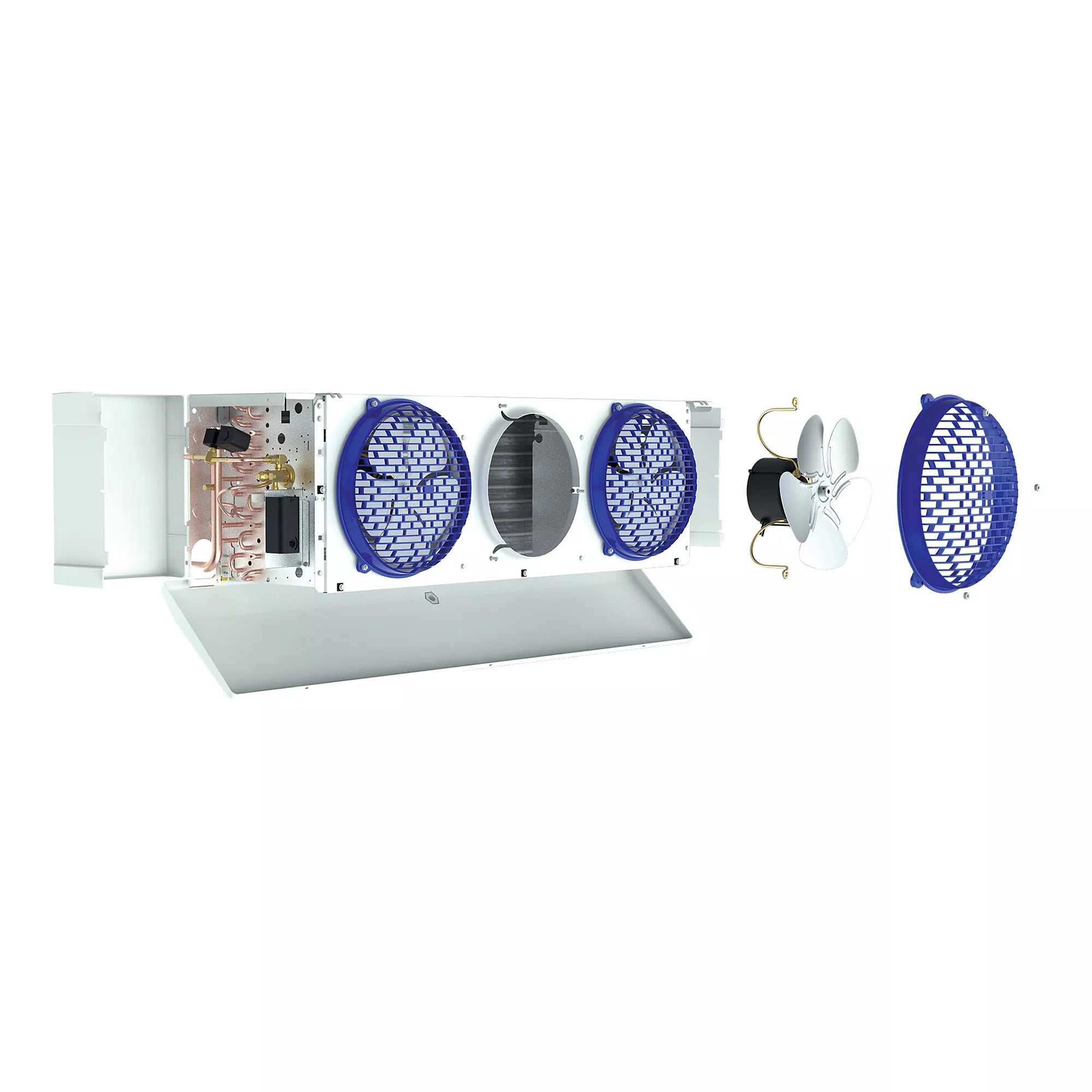

• Features hinged, removable front access panels for easy maintenance.
• Equipped with a 2-speed EC motor for air defrost models.
• Includes a large diameter drain hole (3/4" ID) located towards the back of the unit.

Product Highlights

This low profile evaporator is ideal for walk-in coolers, offering efficient cooling and easy access for servicing.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0190AS6AMAB0200
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• UL Listed: Yes
• Input Voltage: 115 VAC
• Amps: 2.7
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: No
• ETL Listed: No
• Fins per Inch (FPI): 6
• Liquid Line Size (OD): 1/2"
• Motor Type: ECM (Electronically Commutated Motor)
• Phase: Single
• Prop 65: Yes
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Suction Line Size (OD): 7/8"
• Unit Cooler Defrost Type: Air
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Nominal BTU: 19000
• Unit Cooler Number of Fans: 3
• Unit Cooler Type: Walk-In
• Width: 22.1
• Minimum Circuit Ampacity (MCA): 2.9
• Country of Origin: USA
• Flow Rate: 1830 CFM
• Number of Circuits: 8
• Coil Inlet Outer Diameter: 1/2 Inch
• Suction Outer Diameter: 7/8 Inch
• Equalizer Outer Diameter: 1/4 Inch
• Drain: 3/4 Inch Male Threaded
• Includes: intelliGen Refrigeration Controller (R-404A/R-448A/R-449A)
• Cooling Capacity: 19000 BTU/Hour
• Enclosure Material: Stainless Steel
• Number Of Phases: 1
• Power Rating: 165 Watt (Motor)
• Defrost Type: Air Defrost
• Electrical: 115/1/60
