Larkin LEL0105AS6AMAB0200 Evaporator Low Profile 10500 BTU

Product Description

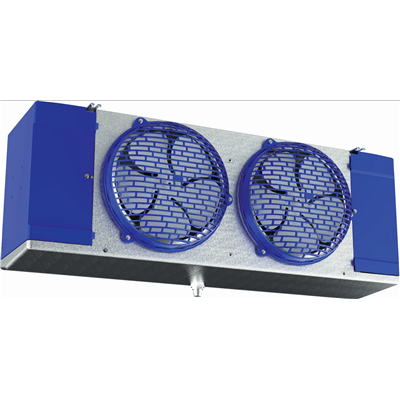

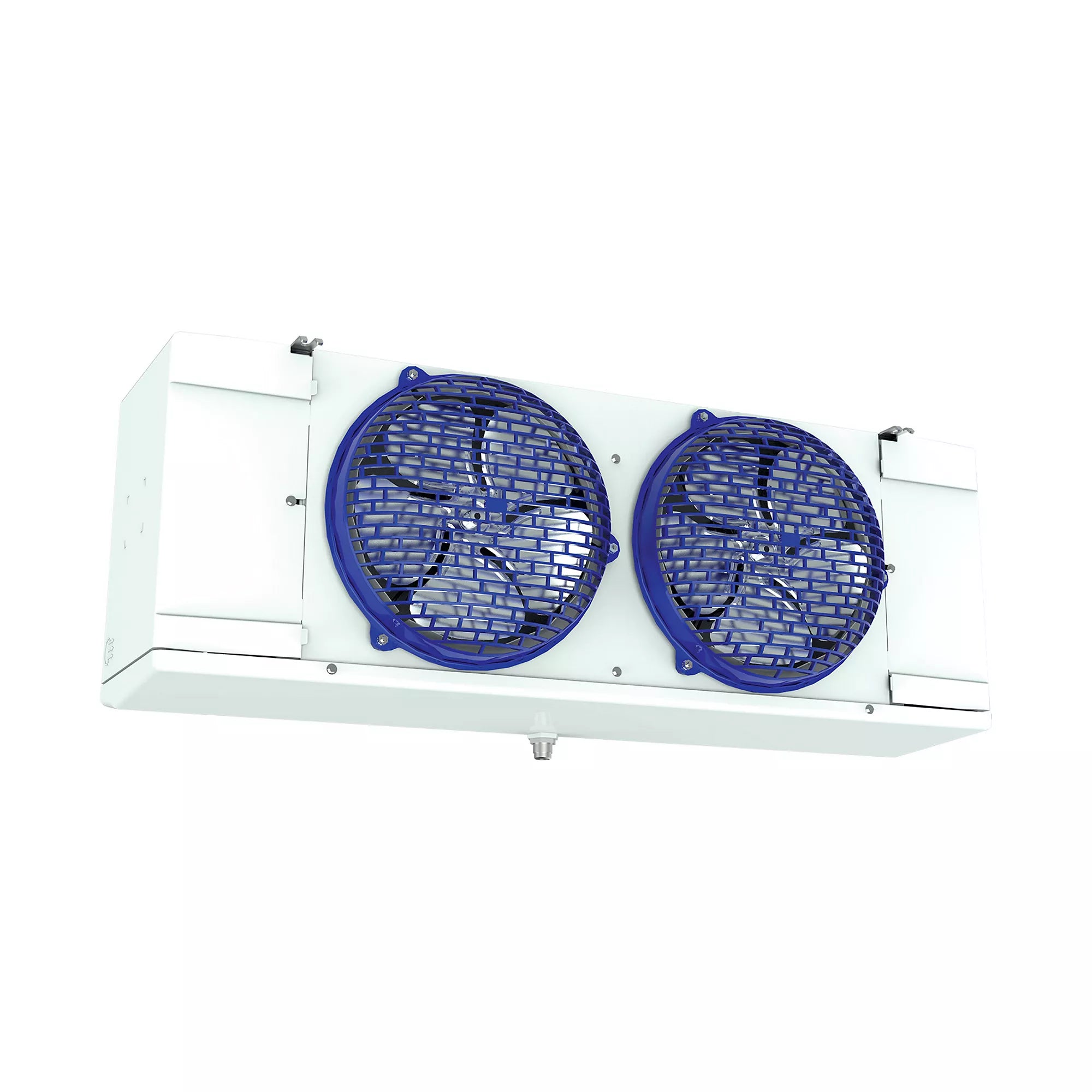

The Larkin LEL0105AS6AMAB0200 is a low profile evaporator with a cooling capacity of 10500 BTU/Hour. This unit cooler features a hinged, removable front access panel for easy access to electrical and refrigeration components. It operates at 115 VAC and includes a factory-installed liquid line solenoid wire harness for quick installation. Designed for walk-in coolers.

• Cabinet design features hinged, removable front access panels
• Molded fan guard and access panels are made of strong, durable, NSF and UL Sanitation rated lightweight and damage-resistant molded plastic material

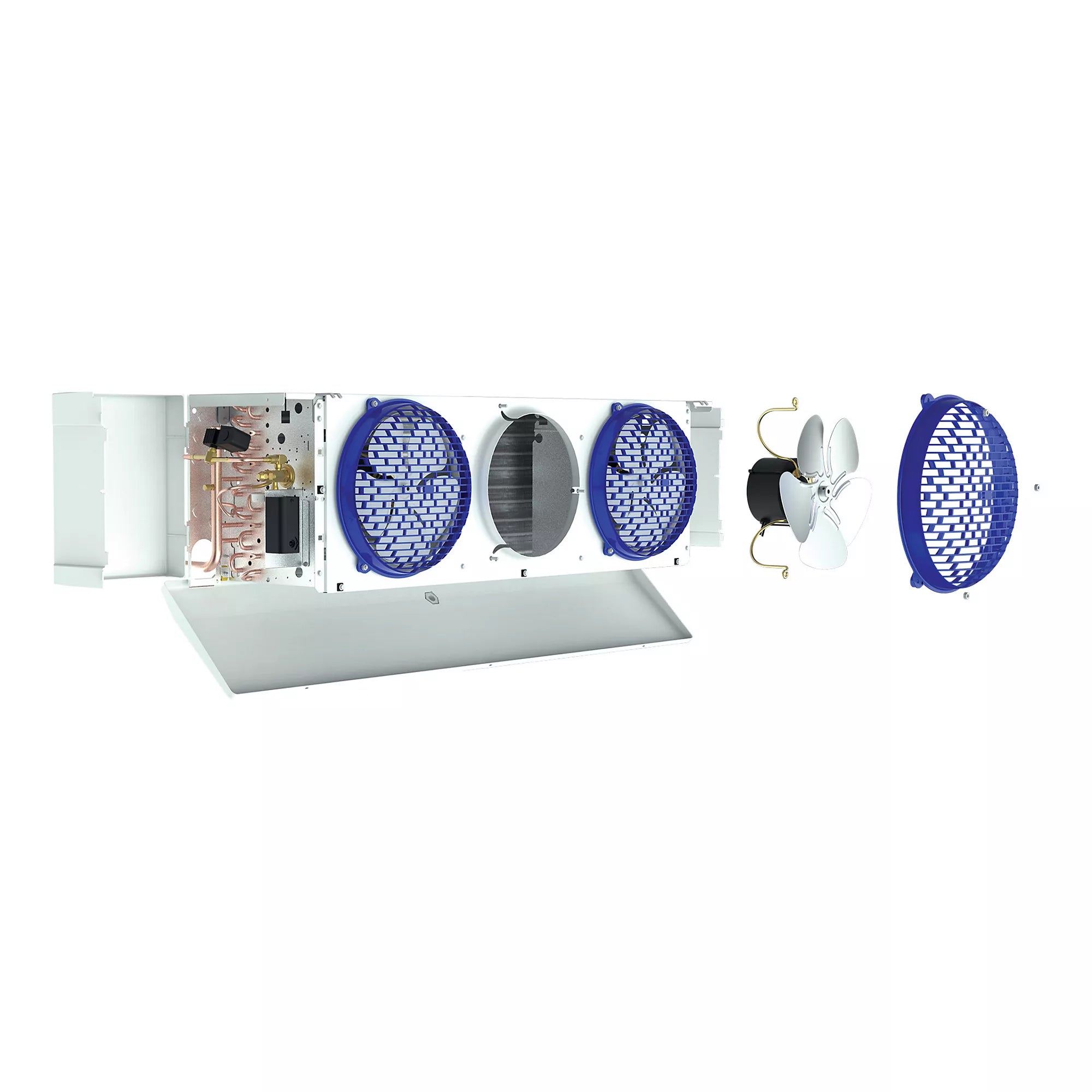

• Quick-removal fan guard/motor assembly for easier servicing of air mover parts

Product Highlights

This low profile evaporator is designed for easy installation and servicing, featuring a durable cabinet and efficient cooling performance.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0105AS6AMAB0200
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• UL Listed: Yes
• Voltage: 115 VAC
• Amps: 1.8
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: No
• ETL Listed: No
• Fins per Inch (FPI): 6
• Liquid Line Size (OD): 1/2"
• Motor Type: ECM (Electronically Commutated Motor)
• Phase: Single
• Prop 65: Yes
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Suction Line Size (OD): 5/8"
• Unit Cooler Defrost Type: Air
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Nominal BTU: 10500
• Unit Cooler Number of Fans: 2
• Unit Cooler Type: Walk-In
• Minimum Circuit Ampacity (MCA): 2
• Country of Origin: USA
• Cooling Capacity: 10500 BTU/Hour
• Current Rating: 2 Amp Minimum Circuit Ampacity (Air Defrost), 20 Amp Maximum Over Current Protection Device (Air Defrost), 1.8 Amp (Motor)
• Frequency Rating: 60 Hertz
• Power Rating: 110 Watt (Motor)
• Installation: Wall
• Enclosure Material: Stainless Steel
• Approval: UL (Canada and US), NSF
• Airflow Rating: 1425 CFM
• Coil Inlet Outer Diameter: 1/2 Inch
• Suction Outer Diameter: 5/8 Inch
• Equalizer Outer Diameter: 1/4 Inch
• Drain: 3/4 Inch Male Threaded
• Number of Circuits: 3
• Includes: Standard Base
• Type: Low Profile
• Series/Model: AS6AMAB
